Chapter 18: Computational Modeling#
Mathematics for Psychologists and Computation
Welcome to Chapter 18, where we’ll explore computational modeling - a powerful approach that allows psychologists to formalize theories, simulate behavior, and test hypotheses about psychological processes. Computational models bridge the gap between mathematical theory and empirical data, providing insights that might be difficult to obtain through traditional experimental methods alone.
In this chapter, we’ll build on the mathematical foundations established in previous chapters, particularly differential equations, to develop and analyze computational models relevant to psychological research.
1. Introduction to Computational Modeling in Psychology#
Computational modeling involves creating formal, mathematical representations of psychological processes that can be implemented as computer programs. These models allow researchers to:
Formalize Theories: Transform verbal theories into precise mathematical statements
Generate Predictions: Derive specific, testable predictions from theoretical principles
Simulate Behavior: Run simulations to observe how a system might behave under various conditions
Test Hypotheses: Compare model predictions with empirical data to evaluate theories
Discover Mechanisms: Identify potential underlying mechanisms that explain observed behavior
Let’s start by importing the libraries we’ll need throughout this chapter:
import numpy as np
import matplotlib.pyplot as plt
import pandas as pd
import seaborn as sns
from scipy import stats, optimize, integrate
# Set plotting parameters for better visualization
plt.rcParams['figure.figsize'] = (10, 6)
plt.rcParams['font.size'] = 12
sns.set_style('whitegrid')
# Suppress warnings
import warnings
warnings.filterwarnings('ignore')
1.1 Types of Computational Models in Psychology#
Computational models in psychology come in various forms, each suited to different research questions and levels of analysis:
Mathematical Models: Formal equations that describe relationships between variables
Process Models: Step-by-step algorithms that simulate cognitive processes
Connectionist Models: Neural network-based models that learn from experience
Bayesian Models: Probabilistic models based on Bayesian inference principles
Dynamical Systems Models: Models that capture how systems change over time
Agent-Based Models: Simulations of interactions between autonomous agents
In this chapter, we’ll focus primarily on mathematical and dynamical systems models, building on the differential equations we explored in Chapter 17.
1.2 The Modeling Cycle#
Computational modeling typically follows an iterative cycle:
Formulate the Model: Define the mathematical structure based on theoretical assumptions
Implement the Model: Translate the mathematics into computer code
Simulate Behavior: Run the model to generate predictions
Compare with Data: Evaluate how well the model matches empirical observations
Refine the Model: Adjust parameters or structure to improve fit
This cycle continues until the model adequately captures the phenomenon of interest or until its limitations become clear.
2. Building Simple Computational Models#
Let’s start with some simple but powerful models that are widely used in psychological research.
2.1 Modeling Learning: The Rescorla-Wagner Model#
The Rescorla-Wagner model is a classic model of associative learning that describes how organisms learn associations between stimuli. The core equation is:
Where:
\(\Delta V\) is the change in associative strength
\(\alpha\) is the learning rate for the conditioned stimulus (CS)
\(\beta\) is the learning rate for the unconditioned stimulus (US)
\(\lambda\) is the maximum possible associative strength
\(V\) is the current associative strength
Let’s implement this model to simulate a simple conditioning experiment:
def rescorla_wagner(alpha, beta, lambda_max, initial_v, trials):
"""Simulate learning using the Rescorla-Wagner model.
Parameters:
-----------
alpha : float
Learning rate for the conditioned stimulus (0-1)
beta : float
Learning rate for the unconditioned stimulus (0-1)
lambda_max : float
Maximum associative strength
initial_v : float
Initial associative strength
trials : int
Number of learning trials to simulate
Returns:
--------
v_values : array
Associative strength after each trial
"""
v_values = np.zeros(trials + 1)
v_values[0] = initial_v
for t in range(trials):
delta_v = alpha * beta * (lambda_max - v_values[t])
v_values[t + 1] = v_values[t] + delta_v
return v_values
# Simulate learning with different parameters
trials = 20
v_fast = rescorla_wagner(alpha=0.3, beta=0.5, lambda_max=1.0, initial_v=0.0, trials=trials)
v_medium = rescorla_wagner(alpha=0.15, beta=0.5, lambda_max=1.0, initial_v=0.0, trials=trials)
v_slow = rescorla_wagner(alpha=0.05, beta=0.5, lambda_max=1.0, initial_v=0.0, trials=trials)

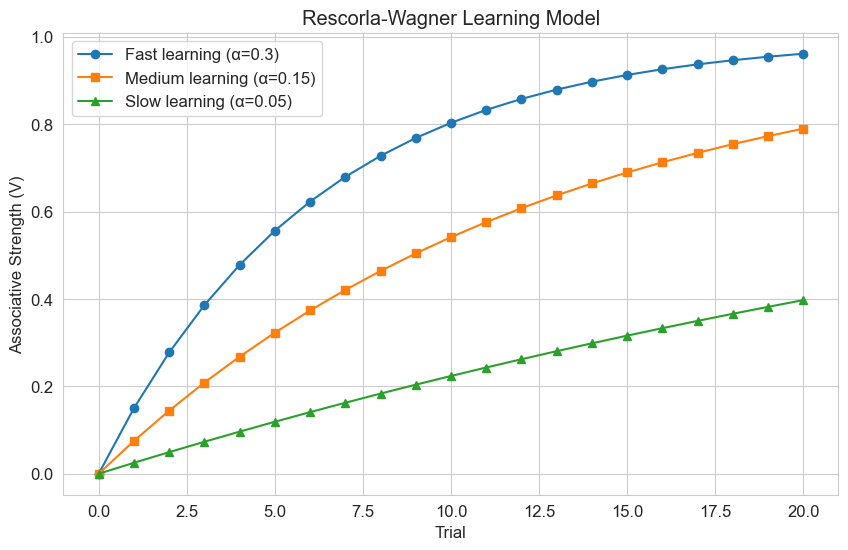

# Plot the learning curves
plt.figure(figsize=(10, 6))
plt.plot(range(trials + 1), v_fast, 'o-', label='Fast learning (α=0.3)')
plt.plot(range(trials + 1), v_medium, 's-', label='Medium learning (α=0.15)')
plt.plot(range(trials + 1), v_slow, '^-', label='Slow learning (α=0.05)')
plt.xlabel('Trial')
plt.ylabel('Associative Strength (V)')
plt.title('Rescorla-Wagner Learning Model')
plt.legend()
plt.grid(True)
plt.show()
The Rescorla-Wagner model demonstrates several important principles of learning:
Learning is fastest at the beginning and slows as the associative strength approaches its maximum
The learning rate parameters (α and β) control how quickly associations form
Learning follows a negatively accelerated curve, similar to many empirical learning curves
This simple model has been remarkably successful in explaining various phenomena in classical conditioning, including acquisition, extinction, blocking, and overshadowing.
2.2 Modeling Decision Making: Drift Diffusion Model#
The Drift Diffusion Model (DDM) is a popular model of decision making that describes how people make choices between two alternatives. The model assumes that evidence accumulates over time until it reaches a decision threshold.
The basic DDM can be described by the stochastic differential equation:
Where:
\(x\) is the accumulated evidence
\(v\) is the drift rate (average rate of evidence accumulation)
\(s\) is the noise coefficient
\(dW\) is a Wiener process (random noise)
Let’s implement a simple version of this model:
def drift_diffusion_trial(drift_rate, threshold, noise_sd, max_time=10.0, dt=0.01):
"""Simulate a single trial of the drift diffusion model.
Parameters:
-----------
drift_rate : float
Rate of evidence accumulation
threshold : float
Decision threshold (positive value)
noise_sd : float
Standard deviation of the noise
max_time : float
Maximum simulation time
dt : float
Time step for simulation
Returns:
--------
decision : int
1 for upper threshold, -1 for lower threshold, 0 for no decision
rt : float
Reaction time (time to reach threshold)
evidence : array
Evidence values at each time step
times : array
Time points
"""
# Initialize
times = np.arange(0, max_time, dt)
n_steps = len(times)
evidence = np.zeros(n_steps)
# Simulate evidence accumulation
for i in range(1, n_steps):
# Add drift and noise
evidence[i] = evidence[i-1] + drift_rate * dt + noise_sd * np.sqrt(dt) * np.random.normal()
# Check if threshold is reached
if evidence[i] >= threshold:
return 1, times[i], evidence[:i+1], times[:i+1] # Upper threshold
elif evidence[i] <= -threshold:
return -1, times[i], evidence[:i+1], times[:i+1] # Lower threshold
# No decision reached within max_time
return 0, max_time, evidence, times

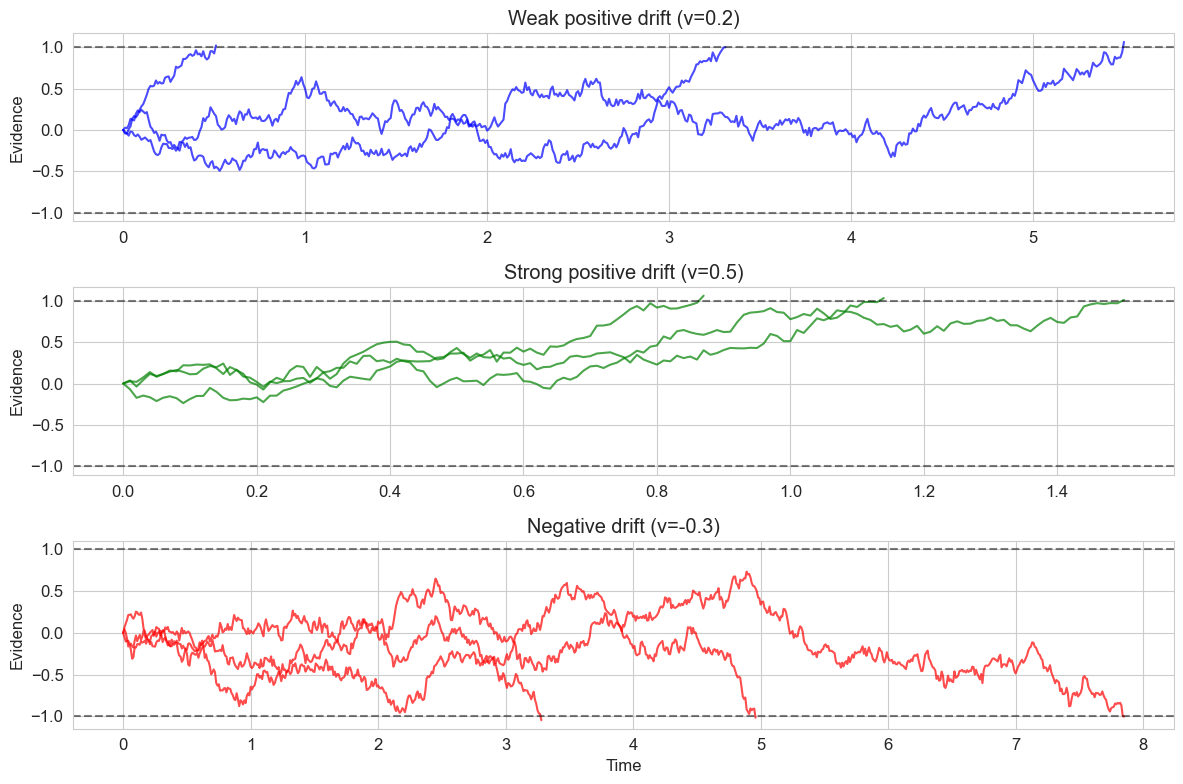

# Run multiple trials with different drift rates
np.random.seed(42) # For reproducibility
threshold = 1.0
noise_sd = 0.5
# Simulate trials with different drift rates
drift_rates = [0.2, 0.5, -0.3] # Positive favors upper threshold, negative favors lower
labels = ['Weak positive drift', 'Strong positive drift', 'Negative drift']
colors = ['blue', 'green', 'red']
plt.figure(figsize=(12, 8))
for i, (drift, label, color) in enumerate(zip(drift_rates, labels, colors)):
# Run 3 example trials for each drift rate
for j in range(3):
decision, rt, evidence, times = drift_diffusion_trial(drift, threshold, noise_sd)
# Plot with slight offset for visibility
plt.subplot(3, 1, i+1)
plt.plot(times, evidence, alpha=0.7, color=color)
# Add threshold lines and labels
plt.axhline(y=threshold, linestyle='--', color='black', alpha=0.5)
plt.axhline(y=-threshold, linestyle='--', color='black', alpha=0.5)
plt.title(f'{label} (v={drift})')
plt.ylabel('Evidence')
# Only add x-label to bottom plot
if i == 2:
plt.xlabel('Time')
plt.tight_layout()
plt.show()

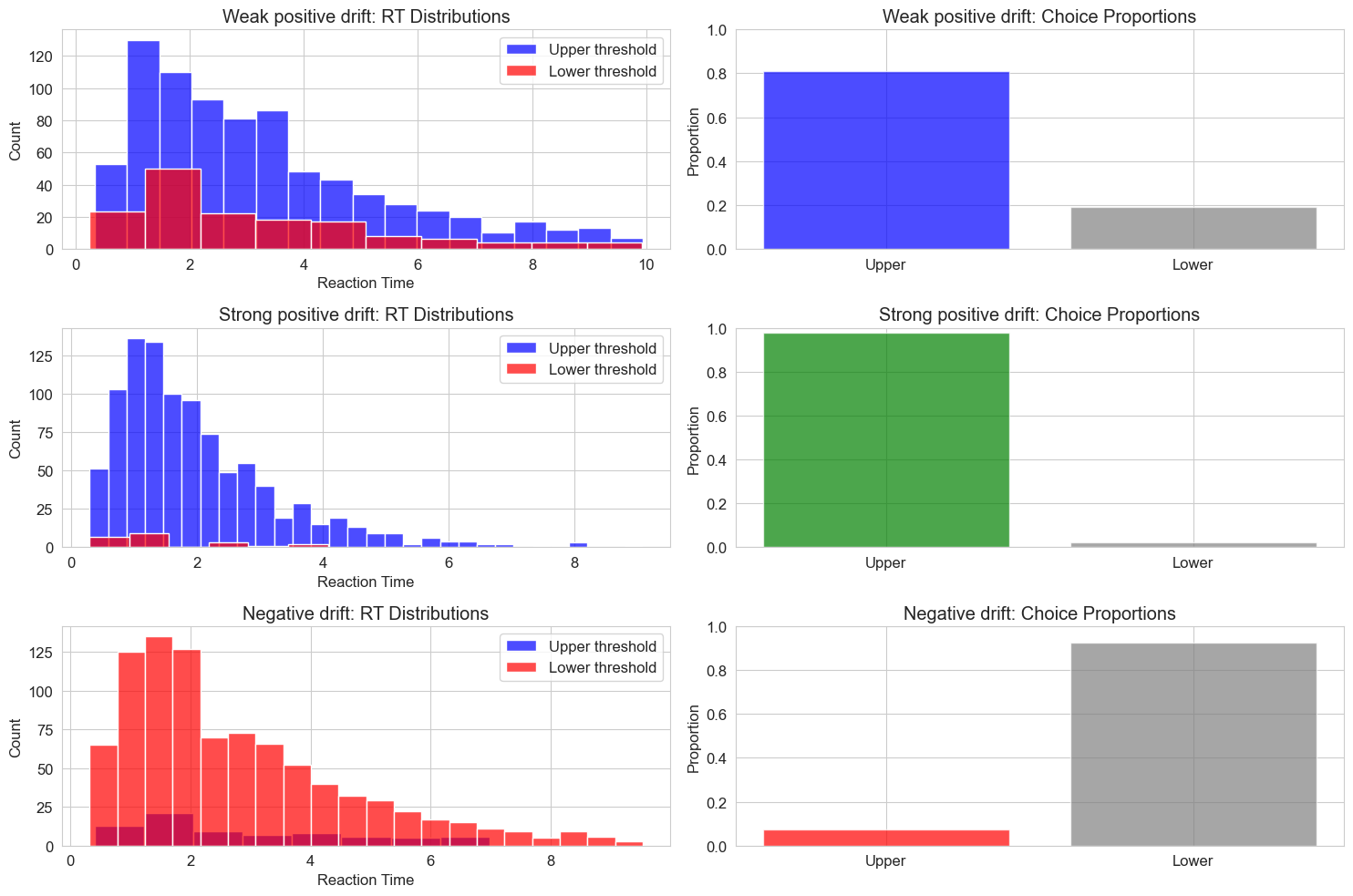

Now let’s simulate many trials to see the distribution of reaction times and choices:
def run_ddm_experiment(drift_rate, threshold, noise_sd, n_trials=1000):
"""Run multiple trials of the drift diffusion model."""
decisions = np.zeros(n_trials)
rts = np.zeros(n_trials)
for i in range(n_trials):
decision, rt, _, _ = drift_diffusion_trial(drift_rate, threshold, noise_sd)
decisions[i] = decision
rts[i] = rt
return decisions, rts
# Run experiments with different drift rates
np.random.seed(42)
n_trials = 1000
threshold = 1.0
noise_sd = 0.5
drift_rates = [0.2, 0.5, -0.3]
labels = ['Weak positive drift', 'Strong positive drift', 'Negative drift']
colors = ['blue', 'green', 'red']
plt.figure(figsize=(15, 10))
for i, (drift, label, color) in enumerate(zip(drift_rates, labels, colors)):
decisions, rts = run_ddm_experiment(drift, threshold, noise_sd, n_trials)
# Calculate proportion of upper threshold choices
prop_upper = np.sum(decisions == 1) / n_trials
# Separate RTs by decision
upper_rts = rts[decisions == 1]
lower_rts = rts[decisions == -1]
# Plot RT distributions
plt.subplot(3, 2, 2*i+1)
if len(upper_rts) > 0:
sns.histplot(upper_rts, color='blue', alpha=0.7, label='Upper threshold')
if len(lower_rts) > 0:
sns.histplot(lower_rts, color='red', alpha=0.7, label='Lower threshold')
plt.title(f'{label}: RT Distributions')
plt.xlabel('Reaction Time')
plt.ylabel('Count')
plt.legend()
# Plot choice proportions
plt.subplot(3, 2, 2*i+2)
plt.bar(['Upper', 'Lower'], [prop_upper, 1-prop_upper], color=[color, 'gray'], alpha=0.7)
plt.title(f'{label}: Choice Proportions')
plt.ylabel('Proportion')
plt.ylim(0, 1)
plt.tight_layout()
plt.show()
The Drift Diffusion Model demonstrates several important principles of decision making:
Speed-Accuracy Tradeoff: Higher thresholds lead to more accurate but slower decisions
Evidence Quality: Stronger drift rates (better evidence) lead to faster and more accurate decisions
RT Distributions: The model naturally produces right-skewed reaction time distributions similar to those observed in empirical data
Error RTs: The model can explain why error responses are sometimes faster or slower than correct responses
The DDM has been successfully applied to a wide range of decision-making tasks, from simple perceptual decisions to more complex value-based choices.
3. Dynamical Systems Models in Psychology#
Building on our work with differential equations in Chapter 17, let’s explore how dynamical systems models can be applied to psychological phenomena.

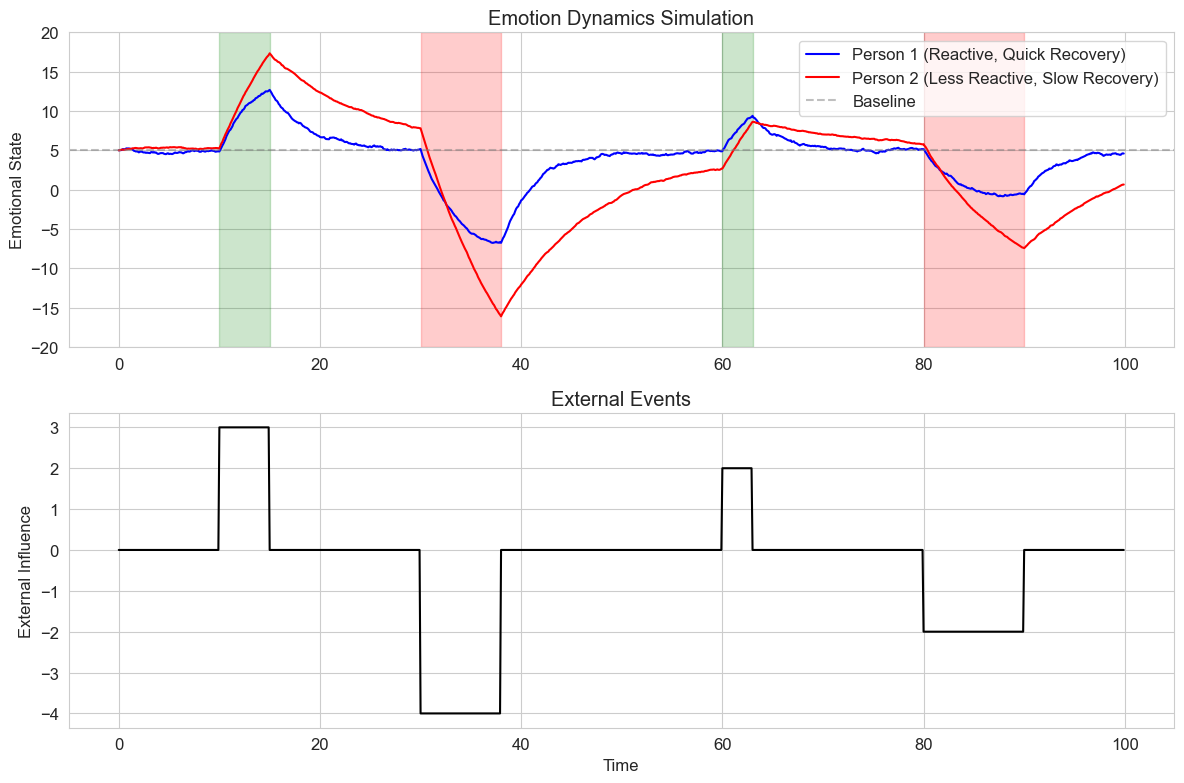

3.1 Modeling Emotion Dynamics#
Emotions fluctuate over time and can be influenced by various factors, including external events and internal regulation processes. A simple dynamical model of emotion might include:
A baseline emotional state
A tendency to return to baseline (homeostasis)
External influences (events)
Random fluctuations
We can model this using a stochastic differential equation:
Where:
\(x\) is the emotional state
\(b\) is the baseline state
\(\alpha\) is the rate of return to baseline
\(I(t)\) represents external influences
\(\sigma\eta(t)\) represents random fluctuations
Let’s implement this model:
def emotion_dynamics(alpha, baseline, external_events, noise_level, initial_state, duration, dt=0.1):
"""Simulate emotion dynamics using a simple dynamical model.
Parameters:
-----------
alpha : float
Rate of return to baseline
baseline : float
Baseline emotional state
external_events : list of tuples
Each tuple contains (time, magnitude, duration) of an external event
noise_level : float
Standard deviation of random fluctuations
initial_state : float
Initial emotional state
duration : float
Total duration to simulate
dt : float
Time step for simulation
Returns:
--------
times : array
Time points
states : array
Emotional states at each time point
events : array
External influence at each time point
"""
# Initialize
times = np.arange(0, duration, dt)
n_steps = len(times)
states = np.zeros(n_steps)
events = np.zeros(n_steps)
states[0] = initial_state
# Add external events
for event_time, magnitude, event_duration in external_events:
event_start = int(event_time / dt)
event_end = int((event_time + event_duration) / dt)
if event_end >= n_steps:
event_end = n_steps - 1
events[event_start:event_end] += magnitude
# Simulate emotion dynamics
for i in range(1, n_steps):
# Calculate change in emotional state
homeostasis = -alpha * (states[i-1] - baseline)
external = events[i-1]
noise = noise_level * np.random.normal()
# Update state
delta_x = (homeostasis + external) * dt + noise * np.sqrt(dt)
states[i] = states[i-1] + delta_x
return times, states, events
# Define parameters for two individuals with different emotion dynamics
np.random.seed(42)
duration = 100 # time units
# Person 1: Highly reactive, quick recovery
alpha1 = 0.3 # Fast return to baseline
baseline1 = 5 # Neutral baseline (on a 0-10 scale)
noise1 = 0.2 # Moderate random fluctuations
# Person 2: Less reactive, slow recovery
alpha2 = 0.1 # Slow return to baseline
baseline2 = 5 # Same baseline
noise2 = 0.1 # Less random fluctuations
# Define some emotional events (time, magnitude, duration)
events = [
(10, 3, 5), # Positive event at t=10, magnitude 3, duration 5
(30, -4, 8), # Negative event at t=30, magnitude -4, duration 8
(60, 2, 3), # Small positive event at t=60
(80, -2, 10) # Moderate negative event at t=80
]
# Simulate emotion dynamics for both individuals
times1, states1, events1 = emotion_dynamics(alpha1, baseline1, events, noise1, baseline1, duration)
times2, states2, events2 = emotion_dynamics(alpha2, baseline2, events, noise2, baseline2, duration)
# Plot the results
plt.figure(figsize=(12, 8))
# Plot emotional states
plt.subplot(2, 1, 1)
plt.plot(times1, states1, 'b-', label='Person 1 (Reactive, Quick Recovery)')
plt.plot(times2, states2, 'r-', label='Person 2 (Less Reactive, Slow Recovery)')
plt.axhline(y=baseline1, color='gray', linestyle='--', alpha=0.5, label='Baseline')
# Highlight event periods
for event_time, magnitude, event_duration in events:
color = 'green' if magnitude > 0 else 'red'
plt.axvspan(event_time, event_time + event_duration, alpha=0.2, color=color)
plt.ylabel('Emotional State')
plt.title('Emotion Dynamics Simulation')
plt.legend()
plt.ylim(-20, 20)
# Plot external events
plt.subplot(2, 1, 2)
plt.plot(times1, events1, 'k-')
plt.xlabel('Time')
plt.ylabel('External Influence')
plt.title('External Events')
plt.tight_layout()
plt.show()

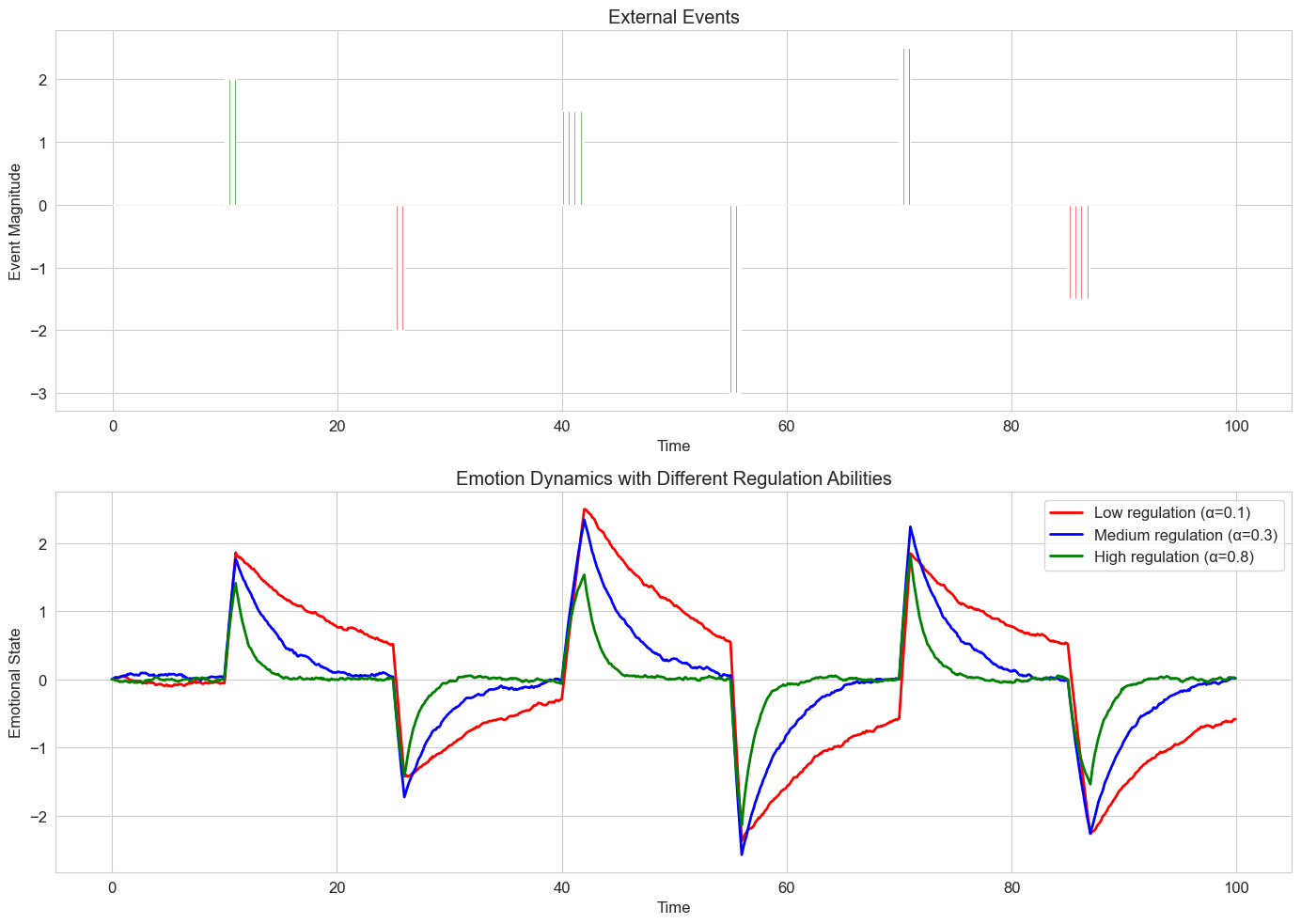

This simple model captures several important aspects of emotional dynamics:
Individual Differences: People differ in their emotional reactivity and recovery rates
Homeostasis: Emotions tend to return to a baseline state over time
External Influences: Events can push emotions away from baseline
Stochasticity: Emotions fluctuate randomly even in the absence of major events
More complex models might include additional factors such as emotion regulation strategies, interactions between different emotions, or the influence of cognitive appraisals.
3.2 Modeling Cognitive Dynamics: Attractor Networks#
Attractor networks are dynamical systems models that can represent how cognitive states evolve over time. These models are particularly useful for understanding phenomena like bistable perception, decision making, and memory retrieval.
A simple attractor model can be represented by a potential function with multiple minima (attractors). The system’s state evolves by moving downhill on this potential landscape.
Mathematical Foundation of Attractor Networks The dynamics of attractor networks can be formalized using differential equations. The general form is:
Where:
\(x\) represents the state of the system (e.g., neural activity or perceptual state)
\(V(x)\) is the potential function with multiple local minima (attractors)
\(\nabla V(x)\) is the gradient of the potential function
\(\eta(t)\) represents noise or random fluctuations The negative gradient \(-\nabla V(x)\) ensures that the system moves “downhill” on the potential landscape, eventually settling into one of the local minima (attractors) unless perturbed by noise.
For a one-dimensional system, this simplifies to:
Double-Well Potential Model A classic example is the double-well potential, which can model bistable perception (where perception alternates between two interpretations of an ambiguous stimulus). The potential function can be defined as:
Where:
\(x\) is the perceptual state
The quartic term \(\frac{1}{4}x^4\) ensures stability (prevents the state from growing infinitely)
The quadratic term \(-\frac{1}{2}x^2\) creates two wells (attractors)
\(\lambda x\) is a bias term that can make one attractor deeper than the other The corresponding dynamics equation is:
When \(\lambda = 0\) and without noise, this system has two stable fixed points at \(x = \pm 1\) (the attractors) and an unstable fixed point at \(x = 0\) (the barrier between attractors). Hopfield Networks A more complex attractor network model is the Hopfield network, which can be used to model associative memory. The energy function (analogous to the potential function) for a Hopfield network is:
Where:
\(s_i\) is the state of neuron \(i\) (typically +1 or -1)
\(w_{ij}\) is the connection weight between neurons \(i\) and \(j\)
\(h_i\) is an external input to neuron \(i\) The dynamics of the network follow:
In the discrete-time version, neurons update according to:
The connection weights are typically set using the Hebbian learning rule:
Where \(\xi_i^{\mu}\) is the state of neuron \(i\) in stored pattern \(\mu\), and \(p\) is the number of stored patterns. Continuous Attractor Networks Continuous attractor networks extend these ideas to represent continuous variables like spatial position or head direction. The energy landscape has a continuous manifold of attractors rather than discrete points.
The dynamics can be described by:
Where:
\(r_i\) is the firing rate of neuron \(i\)
\(\tau\) is a time constant
\(f\) is a nonlinear activation function
\(w_{ij}\) are connection weights (typically a function of distance between neurons in the represented space)
\(I_i\) is external input Let’s implement a double-well potential model that could represent bistable perception:
def double_well_potential(x, a=1, b=1):
"""Double-well potential function: V(x) = a*x^4 - b*x^2"""
return a * x**4 - b * x**2
def force_from_potential(x, a=1, b=1):
"""Force is negative gradient of potential: F(x) = -dV/dx"""
return -4 * a * x**3 + 2 * b * x
def simulate_attractor_dynamics(initial_state, noise_level, duration, dt=0.01, a=1, b=1):
"""Simulate dynamics in a double-well attractor."""
times = np.arange(0, duration, dt)
n_steps = len(times)
states = np.zeros(n_steps)
states[0] = initial_state
for i in range(1, n_steps):
# Calculate force and add noise
force = force_from_potential(states[i-1], a, b)
noise = noise_level * np.random.normal()
# Update state
states[i] = states[i-1] + force * dt + noise * np.sqrt(dt)
return times, states
# Plot the potential landscape
x = np.linspace(-2, 2, 1000)
potential = double_well_potential(x)
plt.figure(figsize=(10, 6))
plt.plot(x, potential)
plt.title('Double-Well Potential Landscape')
plt.xlabel('State')
plt.ylabel('Potential Energy')
plt.show()

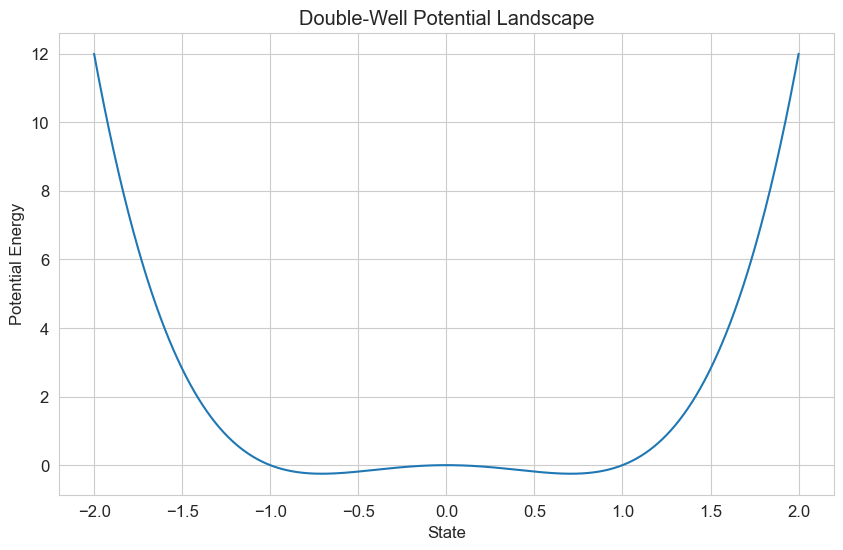

The double-well potential landscape illustrates how a system can have two stable states (the bottoms of the wells) separated by an unstable equilibrium (the peak between them). This type of landscape is useful for modeling phenomena like bistable perception, attitude change, or categorical perception.
Now, let’s simulate how a system might evolve in this landscape under different conditions:
def double_well_dynamics(x, t, a, b, noise=0):
"""Dynamics for a particle in a double-well potential.
The force is the negative gradient of the potential:
F(x) = -dV/dx = -(-a*x + b*x^3) = a*x - b*x^3
"""
return a*x - b*x**3 + noise*np.random.normal()
def simulate_double_well(x0, a, b, noise_level, duration, dt=0.01):
"""Simulate the dynamics of a particle in a double-well potential."""
times = np.arange(0, duration, dt)
n_steps = len(times)
states = np.zeros(n_steps)
states[0] = x0
for i in range(1, n_steps):
# Euler integration with noise
states[i] = states[i-1] + double_well_dynamics(states[i-1], times[i-1], a, b, noise_level) * dt
return times, states
# Parameters
a = 2.0
b = 1.0
duration = 20.0
# Simulate with different initial conditions and noise levels
x0_values = [-1.5, 0, 1.5] # Left well, middle, right well
noise_levels = [0, 0.5] # No noise, moderate noise
plt.figure(figsize=(15, 10))
# Plot the potential landscape for reference
plt.subplot(2, 1, 1)
x = np.linspace(-2, 2, 200)
potential = -0.5*a*x**2 + 0.25*b*x**4
plt.plot(x, potential, 'k-', linewidth=2)
plt.title('Double-Well Potential Landscape')
plt.ylabel('Potential Energy')
plt.grid(True)
# Plot trajectories
plt.subplot(2, 1, 2)
for noise in noise_levels:
for x0 in x0_values:
times, states = simulate_double_well(x0, a, b, noise, duration)
label = f'x0={x0}, noise={noise}'
plt.plot(times, states, label=label, linewidth=2)
plt.title('Trajectories in Double-Well System')
plt.xlabel('Time')
plt.ylabel('State')
plt.legend()
plt.grid(True)
plt.tight_layout()
plt.show()

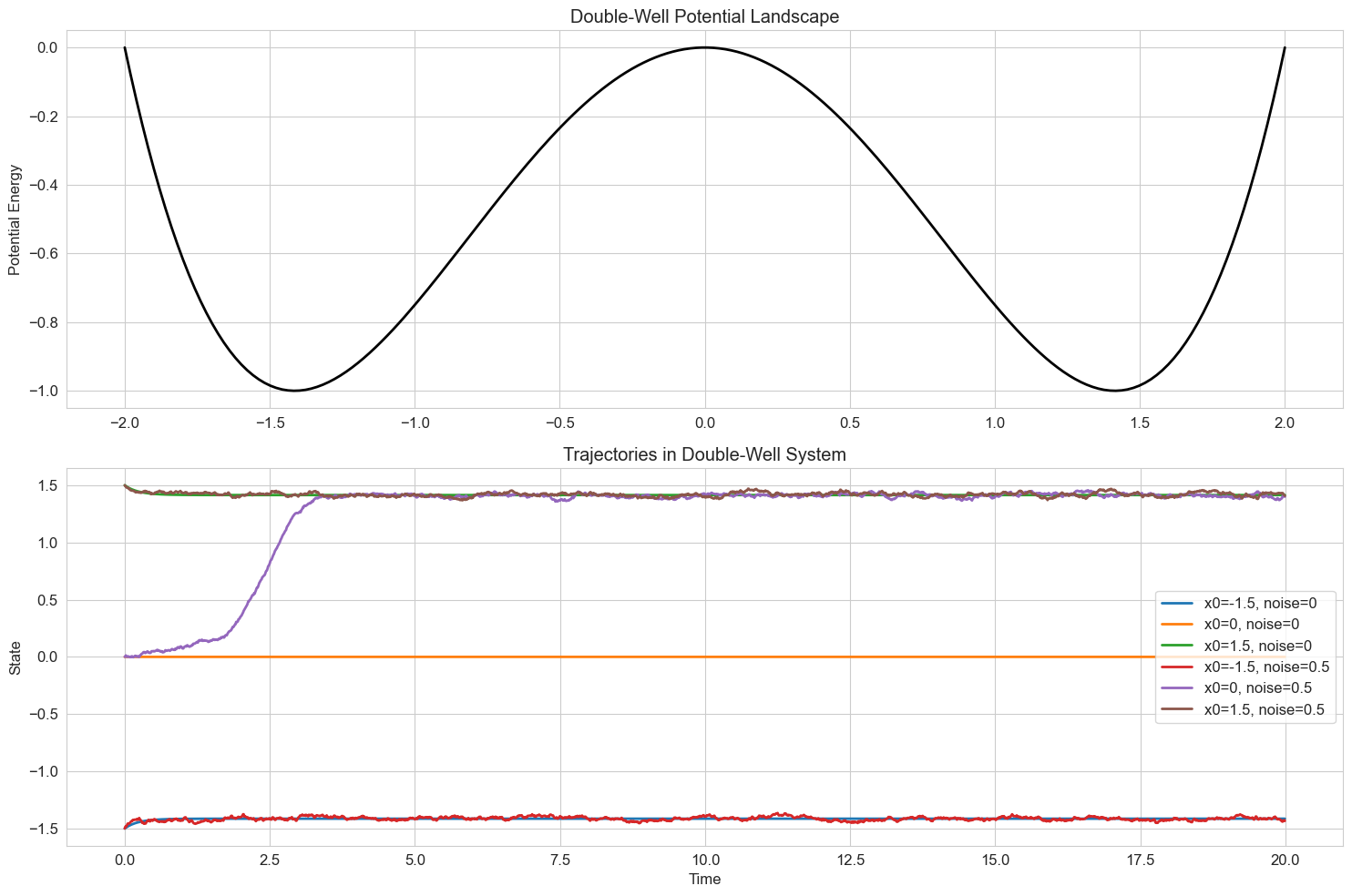

The simulation demonstrates several important properties of dynamical systems with multiple stable states:
Stability: Initial conditions near a stable state tend to stay in that state’s basin of attraction
Instability: Initial conditions at unstable equilibria (like the middle of the potential) are highly sensitive to small perturbations
Noise Effects: Sufficient noise can cause transitions between stable states, with transition probability depending on the barrier height
These properties are relevant to many psychological phenomena, such as:
Bistable Perception: How we switch between alternative interpretations of ambiguous stimuli
Attitude Change: How attitudes can remain stable but occasionally shift dramatically
Decision Making: How preferences can flip between options under uncertainty

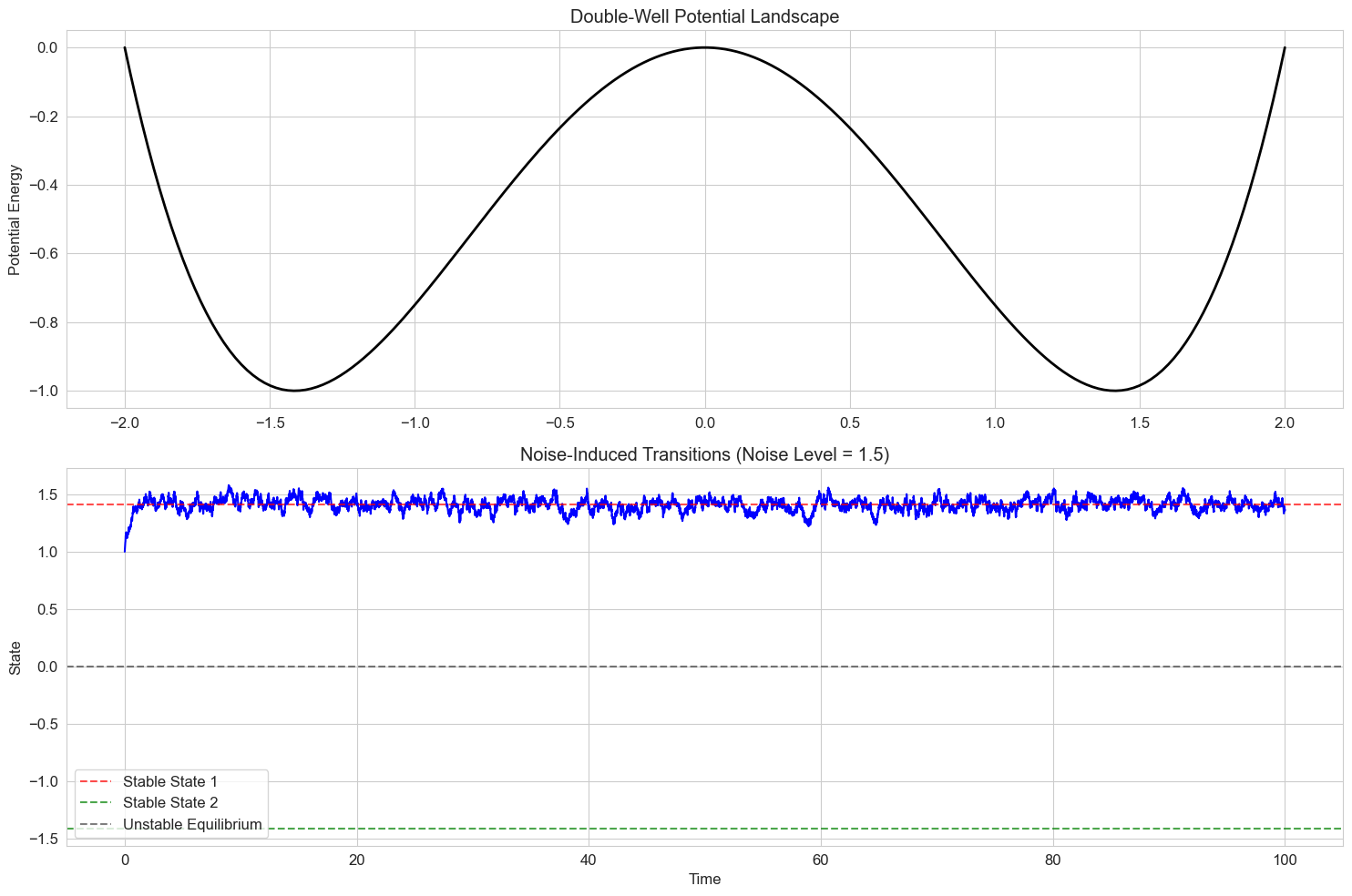

Let’s explore one more example of how noise can induce transitions between stable states:
# Simulate with higher noise to observe transitions
np.random.seed(42) # For reproducibility
duration = 100.0
high_noise = 1.5
times, states = simulate_double_well(1.0, a, b, high_noise, duration)
plt.figure(figsize=(15, 10))
# Plot the potential landscape
plt.subplot(2, 1, 1)
x = np.linspace(-2, 2, 200)
potential = -0.5*a*x**2 + 0.25*b*x**4
plt.plot(x, potential, 'k-', linewidth=2)
plt.title('Double-Well Potential Landscape')
plt.ylabel('Potential Energy')
plt.grid(True)
# Plot the noisy trajectory
plt.subplot(2, 1, 2)
plt.plot(times, states, 'b-', linewidth=1.5)
plt.axhline(y=np.sqrt(a/b), color='r', linestyle='--', alpha=0.7, label='Stable State 1')
plt.axhline(y=-np.sqrt(a/b), color='g', linestyle='--', alpha=0.7, label='Stable State 2')
plt.axhline(y=0, color='k', linestyle='--', alpha=0.5, label='Unstable Equilibrium')
plt.title(f'Noise-Induced Transitions (Noise Level = {high_noise})')
plt.xlabel('Time')
plt.ylabel('State')
plt.legend()
plt.grid(True)
plt.tight_layout()
plt.show()
# Calculate transition statistics
stable_state1 = np.sqrt(a/b)
stable_state2 = -np.sqrt(a/b)
threshold = 0 # Use the unstable equilibrium as threshold
# Identify transitions
in_state1 = states > threshold
transitions = np.diff(in_state1.astype(int))
transitions_1to2 = np.where(transitions == -1)[0]
transitions_2to1 = np.where(transitions == 1)[0]
print(f"Number of transitions from state 1 to state 2: {len(transitions_1to2)}")
print(f"Number of transitions from state 2 to state 1: {len(transitions_2to1)}")
# Calculate average dwell times
if len(transitions_1to2) > 0 and len(transitions_2to1) > 0:
dwell_times1 = np.diff(np.concatenate(([0], transitions_1to2))) * dt
dwell_times2 = np.diff(np.concatenate(([0], transitions_2to1))) * dt
print(f"Average dwell time in state 1: {np.mean(dwell_times1):.2f} time units")
print(f"Average dwell time in state 2: {np.mean(dwell_times2):.2f} time units")
Number of transitions from state 1 to state 2: 0
Number of transitions from state 2 to state 1: 0
This simulation demonstrates how noise can induce transitions between stable states, a phenomenon known as stochastic resonance. This concept has been applied to explain various psychological phenomena, including:
Perceptual Switching: How we alternate between interpretations of ambiguous figures like the Necker cube
Attention Fluctuations: How attention naturally oscillates between different foci
Mood Dynamics: How mood can fluctuate between different states
The statistics of these transitions (frequency and dwell times) can provide insights into the underlying dynamics of the system.
4. Modeling Cognitive Processes#
Let’s now explore models of specific cognitive processes, focusing on memory and learning.
4.1 Memory Models: The ACT-R Activation Equation#
The ACT-R cognitive architecture includes a mathematical model of memory retrieval based on activation. The activation of a memory item determines how quickly and accurately it can be retrieved.
The basic activation equation is:
Where:
\(A_i\) is the activation of memory item \(i\)
\(B_i\) is the base-level activation, reflecting practice and decay
\(W_j\) is the attentional weight given to context element \(j\)
\(S_{ji}\) is the strength of association between context element \(j\) and memory item \(i\)
The base-level activation is further defined as:
Where:
\(t_k\) is the time since the \(k\)th practice of item \(i\)
\(d\) is the decay parameter (typically around 0.5)
\(n\) is the number of practices

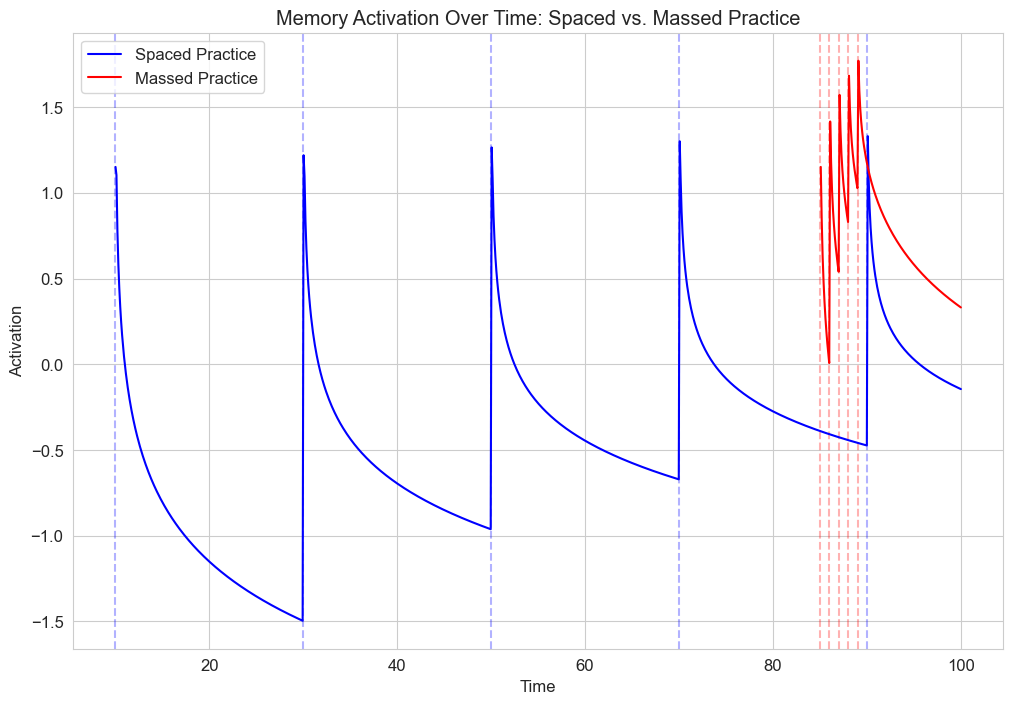

Let’s implement a simplified version of this model to simulate memory retrieval:
def base_level_activation(practice_times, current_time, decay=0.5):
"""Calculate base-level activation according to ACT-R.
Parameters:
-----------
practice_times : array
Times when the item was practiced
current_time : float
Current time
decay : float
Decay parameter (default: 0.5)
Returns:
--------
activation : float
Base-level activation
"""
# Calculate time since each practice
time_since_practice = current_time - np.array(practice_times)
# Ensure all times are positive (avoid division by zero)
time_since_practice = np.maximum(time_since_practice, 0.1)
# Calculate activation
activation = np.log(np.sum(time_since_practice ** (-decay)))
return activation
def retrieval_probability(activation, threshold, noise=0.3):
"""Calculate probability of successful retrieval.
Parameters:
-----------
activation : float
Memory activation
threshold : float
Retrieval threshold
noise : float
Activation noise parameter
Returns:
--------
probability : float
Probability of successful retrieval
"""
# Logistic function to convert activation difference to probability
return 1 / (1 + np.exp(-(activation - threshold) / noise))
def retrieval_time(activation, latency_factor=0.2):
"""Calculate retrieval time.
Parameters:
-----------
activation : float
Memory activation
latency_factor : float
Scaling factor for retrieval time
Returns:
--------
time : float
Retrieval time in seconds
"""
return latency_factor * np.exp(-activation)
# Simulate memory practice and retrieval
# Let's create a spaced practice schedule and a massed practice schedule
current_time = 100 # Current time (arbitrary units)
# Spaced practice: 5 sessions spread out over time
spaced_practice = [10, 30, 50, 70, 90] # Times of practice sessions
# Massed practice: 5 sessions close together
massed_practice = [85, 86, 87, 88, 89] # Times of practice sessions
# Calculate activations over time
times = np.linspace(0, current_time, 1000)
spaced_activations = np.zeros_like(times)
massed_activations = np.zeros_like(times)
for i, t in enumerate(times):
# Only include practices that happened before the current time
spaced_valid = [p for p in spaced_practice if p <= t]
massed_valid = [p for p in massed_practice if p <= t]
if len(spaced_valid) > 0:
spaced_activations[i] = base_level_activation(spaced_valid, t)
else:
spaced_activations[i] = float('-inf') # No practice yet
if len(massed_valid) > 0:
massed_activations[i] = base_level_activation(massed_valid, t)
else:
massed_activations[i] = float('-inf') # No practice yet
# Plot activations over time
plt.figure(figsize=(12, 8))
# Mark practice times
for p in spaced_practice:
plt.axvline(x=p, color='blue', linestyle='--', alpha=0.3)
for p in massed_practice:
plt.axvline(x=p, color='red', linestyle='--', alpha=0.3)
# Plot activations
valid_spaced = spaced_activations > float('-inf')
valid_massed = massed_activations > float('-inf')
plt.plot(times[valid_spaced], spaced_activations[valid_spaced], 'b-', label='Spaced Practice')
plt.plot(times[valid_massed], massed_activations[valid_massed], 'r-', label='Massed Practice')
plt.title('Memory Activation Over Time: Spaced vs. Massed Practice')
plt.xlabel('Time')
plt.ylabel('Activation')
plt.legend()
plt.grid(True)
plt.show()
# Calculate retrieval probabilities at the end
threshold = -0.5 # Retrieval threshold
spaced_prob = retrieval_probability(spaced_activations[-1], threshold)
massed_prob = retrieval_probability(massed_activations[-1], threshold)
spaced_time = retrieval_time(spaced_activations[-1])
massed_time = retrieval_time(massed_activations[-1])
print(f"Spaced Practice: Retrieval Probability = {spaced_prob:.2f}, Retrieval Time = {spaced_time:.2f} s")
print(f"Massed Practice: Retrieval Probability = {massed_prob:.2f}, Retrieval Time = {massed_time:.2f} s")
Spaced Practice: Retrieval Probability = 0.77, Retrieval Time = 0.23 s
Massed Practice: Retrieval Probability = 0.94, Retrieval Time = 0.14 s
This model demonstrates the spacing effect in memory: spaced practice leads to better long-term retention than massed practice, even with the same number of practice sessions. The ACT-R activation equation provides a mathematical explanation for this effect through the power-law decay of memory traces.
The model also shows how activation affects both the probability of successful retrieval and the time required for retrieval, capturing two key aspects of memory performance.
4.2 Reinforcement Learning Models#
Reinforcement learning (RL) models describe how agents learn from rewards and punishments to optimize their behavior. One of the simplest RL models is the Q-learning algorithm, which learns the expected value of actions in different states.
The core update equation for Q-learning is:
Where:
\(Q(s, a)\) is the expected value of taking action \(a\) in state \(s\)
\(\alpha\) is the learning rate
\(r\) is the reward received
\(\gamma\) is the discount factor for future rewards
\(s'\) is the next state
\(\max_{a'} Q(s', a')\) is the maximum expected value in the next state
Let’s implement a simple Q-learning model for a two-armed bandit task, where an agent must learn which of two options provides higher rewards:
def q_learning_bandit(n_trials, alpha, temperature, reward_probs):
"""Simulate Q-learning in a multi-armed bandit task.
Parameters:
-----------
n_trials : int
Number of trials
alpha : float
Learning rate (0-1)
temperature : float
Temperature parameter for softmax action selection
reward_probs : array
Probability of reward for each action
Returns:
--------
actions : array
Actions chosen on each trial
rewards : array
Rewards received on each trial
q_values : array
Q-values for each action over trials
"""
n_actions = len(reward_probs)
# Initialize arrays to store results
actions = np.zeros(n_trials, dtype=int)
rewards = np.zeros(n_trials)
q_values = np.zeros((n_trials + 1, n_actions)) # +1 to include initial values
# Initialize Q-values to 0
q_values[0] = np.zeros(n_actions)
for t in range(n_trials):
# Choose action using softmax policy
action_probs = np.exp(q_values[t] / temperature)
action_probs = action_probs / np.sum(action_probs) # Normalize
action = np.random.choice(n_actions, p=action_probs)
actions[t] = action
# Get reward (1 with probability reward_probs[action], 0 otherwise)
reward = 1 if np.random.random() < reward_probs[action] else 0
rewards[t] = reward
# Update Q-values
q_values[t+1] = q_values[t].copy()
q_values[t+1, action] += alpha * (reward - q_values[t, action])
return actions, rewards, q_values
# Run simulation
np.random.seed(42)
n_trials = 200
alpha = 0.1 # Learning rate
temperature = 0.2 # Lower values make action selection more deterministic
reward_probs = [0.3, 0.7] # Action 1 has 30% reward probability, Action 2 has 70%
actions, rewards, q_values = q_learning_bandit(n_trials, alpha, temperature, reward_probs)

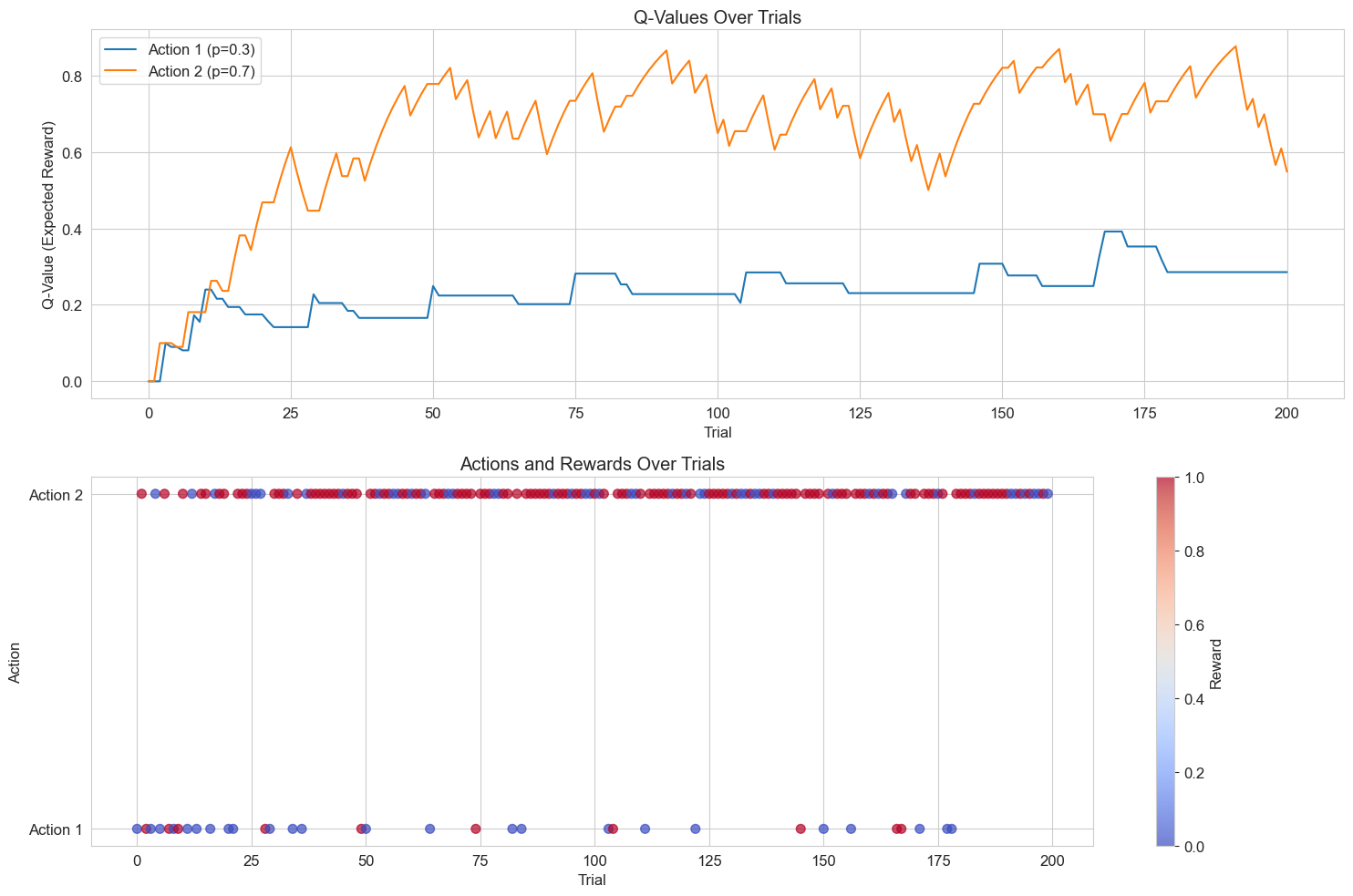

# Plot results
plt.figure(figsize=(15, 10))
# Plot Q-values over trials
plt.subplot(2, 1, 1)
for a in range(len(reward_probs)):
plt.plot(range(n_trials + 1), q_values[:, a], label=f'Action {a+1} (p={reward_probs[a]})')
plt.title('Q-Values Over Trials')
plt.xlabel('Trial')
plt.ylabel('Q-Value (Expected Reward)')
plt.legend()
plt.grid(True)
# Plot action choices and rewards
plt.subplot(2, 1, 2)
plt.scatter(range(n_trials), actions, c=rewards, cmap='coolwarm', alpha=0.7, s=50)
plt.colorbar(label='Reward')
plt.title('Actions and Rewards Over Trials')
plt.xlabel('Trial')
plt.ylabel('Action')
plt.yticks([0, 1], ['Action 1', 'Action 2'])
plt.grid(True)
plt.tight_layout()
plt.show()
# Calculate performance statistics
optimal_action = np.argmax(reward_probs)
optimal_choices = np.sum(actions == optimal_action)
optimal_percentage = optimal_choices / n_trials * 100
# Calculate in blocks of 20 trials
block_size = 20
n_blocks = n_trials // block_size
block_optimal = np.zeros(n_blocks)
for b in range(n_blocks):
start = b * block_size
end = (b + 1) * block_size
block_optimal[b] = np.mean(actions[start:end] == optimal_action) * 100
print(f"Overall optimal choice percentage: {optimal_percentage:.1f}%")
print(f"Final block optimal choice percentage: {block_optimal[-1]:.1f}%")

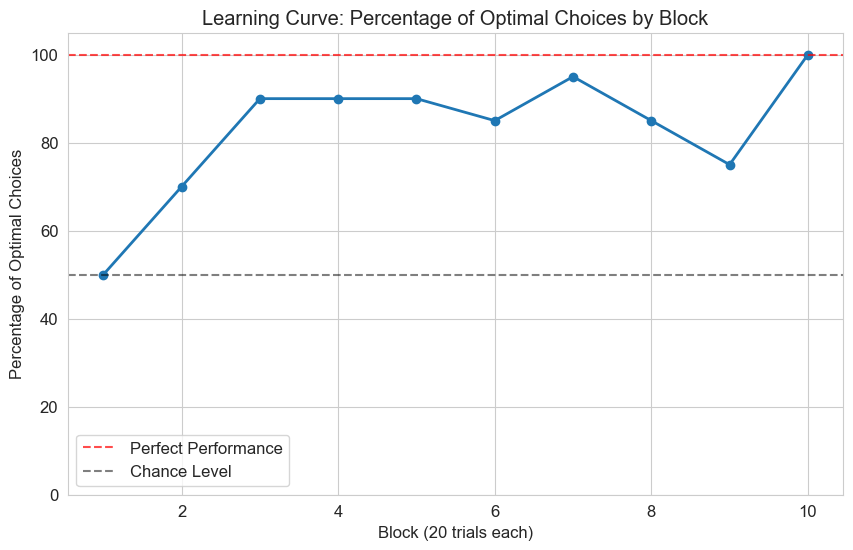

# Plot learning curve in blocks
plt.figure(figsize=(10, 6))
plt.plot(range(1, n_blocks + 1), block_optimal, 'o-', linewidth=2)
plt.axhline(y=100, color='r', linestyle='--', alpha=0.7, label='Perfect Performance')
plt.axhline(y=50, color='k', linestyle='--', alpha=0.5, label='Chance Level')
plt.title('Learning Curve: Percentage of Optimal Choices by Block')
plt.xlabel('Block (20 trials each)')
plt.ylabel('Percentage of Optimal Choices')
plt.ylim(0, 105)
plt.legend()
plt.grid(True)
plt.show()
Overall optimal choice percentage: 83.0%
Final block optimal choice percentage: 100.0%
This Q-learning model demonstrates how an agent can learn to prefer the more rewarding option through trial and error. The model captures several important aspects of human learning:
Exploration vs. Exploitation: The temperature parameter controls the balance between trying different options (exploration) and choosing the option with the highest expected value (exploitation)
Incremental Learning: The learning rate determines how quickly the agent updates its expectations based on new information
Value-Based Choice: Actions are selected probabilistically based on their expected values
Reinforcement learning models have been widely applied to understand human and animal learning in various contexts, from simple conditioning to complex decision-making tasks.
5. Model Fitting and Evaluation#
An important aspect of computational modeling is fitting models to empirical data and evaluating how well they explain the data. Let’s explore these processes using a simple example.
5.1 Generating Synthetic Data#
First, let’s generate some synthetic data from a known model to demonstrate the fitting process. We’ll use the Q-learning model from the previous section:
# Generate synthetic data from a Q-learning agent
np.random.seed(123)
true_alpha = 0.15
true_temperature = 0.3
reward_probs = [0.4, 0.6] # Slightly more subtle difference
n_trials = 150
# Generate data
true_actions, true_rewards, _ = q_learning_bandit(n_trials, true_alpha, true_temperature, reward_probs)

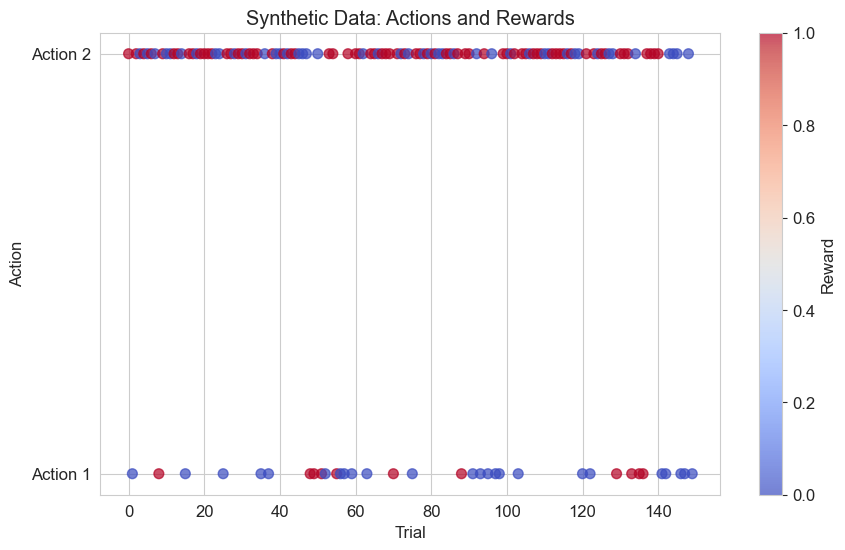

# Plot the data
plt.figure(figsize=(10, 6))
plt.scatter(range(n_trials), true_actions, c=true_rewards, cmap='coolwarm', alpha=0.7, s=50)
plt.colorbar(label='Reward')
plt.title('Synthetic Data: Actions and Rewards')
plt.xlabel('Trial')
plt.ylabel('Action')
plt.yticks([0, 1], ['Action 1', 'Action 2'])
plt.grid(True)
plt.show()
5.2 Model Fitting#
Now, let’s fit the Q-learning model to this synthetic data to recover the parameters:
def emotion_dynamics(alpha, baseline, external_events, noise_level, initial_state, duration, dt=0.1):
"""Simulate emotion dynamics using a simple dynamical model.
Parameters:
-----------
alpha : float
Rate of return to baseline
baseline : float
Baseline emotional state
external_events : list of tuples
Each tuple contains (time, magnitude, duration) of an external event
noise_level : float
Standard deviation of random fluctuations
initial_state : float
Initial emotional state
duration : float
Total duration to simulate
dt : float
Time step for simulation
Returns:
--------
times : array
Time points
states : array
Emotional states at each time point
events : array
External influence at each time point
"""
# Initialize
times = np.arange(0, duration, dt)
n_steps = len(times)
states = np.zeros(n_steps)
events = np.zeros(n_steps)
states[0] = initial_state
# Add external events
for event_time, magnitude, event_duration in external_events:
event_start = int(event_time / dt)
event_end = int((event_time + event_duration) / dt)
if event_end >= n_steps:
event_end = n_steps - 1
events[event_start:event_end] = magnitude
# Simulate the dynamics
for i in range(1, n_steps):
# Calculate the change in emotional state
homeostasis = -alpha * (states[i-1] - baseline) # Return to baseline
external = events[i-1] # External influence
noise = noise_level * np.random.normal() # Random fluctuations
# Update the state
delta_x = (homeostasis + external + noise) * dt
states[i] = states[i-1] + delta_x
return times, states, events
# Simulate emotion dynamics with different parameters
np.random.seed(42)
duration = 100 # Time units (e.g., days)
dt = 0.1
# Define some external events (time, magnitude, duration)
positive_events = [(10, 2.0, 1), (40, 1.5, 2), (70, 2.5, 1)] # Positive events
negative_events = [(25, -2.0, 1), (55, -3.0, 1), (85, -1.5, 2)] # Negative events
all_events = positive_events + negative_events
# Simulate for different regulation abilities (alpha values)
alphas = [0.1, 0.3, 0.8] # Low, medium, high regulation
labels = ['Low regulation', 'Medium regulation', 'High regulation']
colors = ['red', 'blue', 'green']
plt.figure(figsize=(14, 10))
# Plot the external events
plt.subplot(2, 1, 1)
times = np.arange(0, duration, dt)
events_timeline = np.zeros_like(times)
for event_time, magnitude, event_duration in all_events:
event_start = int(event_time / dt)
event_end = int((event_time + event_duration) / dt)
if event_end >= len(times):
event_end = len(times) - 1
events_timeline[event_start:event_end] = magnitude
plt.bar(times, events_timeline, width=dt, color=['green' if e > 0 else 'red' for e in events_timeline])
plt.title('External Events')
plt.xlabel('Time')
plt.ylabel('Event Magnitude')
# Plot the emotional states for different regulation abilities
plt.subplot(2, 1, 2)
for alpha, label, color in zip(alphas, labels, colors):
times, states, _ = emotion_dynamics(
alpha=alpha,
baseline=0,
external_events=all_events,
noise_level=0.1,
initial_state=0,
duration=duration,
dt=dt
)
plt.plot(times, states, label=f'{label} (α={alpha})', color=color, linewidth=2)
plt.title('Emotion Dynamics with Different Regulation Abilities')
plt.xlabel('Time')
plt.ylabel('Emotional State')
plt.legend()
plt.grid(True)
plt.tight_layout()
plt.show()
This emotion dynamics model demonstrates several important principles:
Homeostasis: Emotions tend to return to a baseline state over time
Individual Differences: People differ in their emotion regulation abilities (represented by α)
External Influences: Events can temporarily push emotions away from baseline
Stochasticity: Emotions fluctuate randomly even in the absence of external events
This type of model can be used to study various aspects of emotional functioning, including emotion regulation, emotional reactivity, and emotional recovery from significant life events.
3.2 Coupled Oscillators: Modeling Interpersonal Dynamics#
Interpersonal dynamics, such as the emotional states of two people in a relationship, can be modeled using coupled oscillators. Each person’s emotional state influences the other’s, creating complex patterns of interaction.
A simple model of coupled emotional oscillators can be described by the following system of differential equations:
Where:
\(x_1\) and \(x_2\) are the emotional states of the two individuals
\(b_1\) and \(b_2\) are their baseline states
\(\alpha_1\) and \(\alpha_2\) are their rates of return to baseline
\(c_{12}\) and \(c_{21}\) are the coupling strengths (how much each person influences the other)
\(\sigma_1\eta_1(t)\) and \(\sigma_2\eta_2(t)\) represent random fluctuations
Let’s implement this model:
def coupled_emotions(alphas, baselines, coupling, noise_levels, initial_states, duration, dt=0.1):
"""Simulate coupled emotion dynamics between two individuals.
Parameters:
-----------
alphas : tuple of floats
Rates of return to baseline for each individual
baselines : tuple of floats
Baseline emotional states for each individual
coupling : tuple of floats
Coupling strengths (how much each person influences the other)
noise_levels : tuple of floats
Standard deviations of random fluctuations for each individual
initial_states : tuple of floats
Initial emotional states for each individual
duration : float
Total duration to simulate
dt : float
Time step for simulation
Returns:
--------
times : array
Time points
states1 : array
Emotional states of individual 1 at each time point
states2 : array
Emotional states of individual 2 at each time point
"""
# Unpack parameters
alpha1, alpha2 = alphas
b1, b2 = baselines
c12, c21 = coupling
sigma1, sigma2 = noise_levels
x1_0, x2_0 = initial_states
# Initialize
times = np.arange(0, duration, dt)
n_steps = len(times)
states1 = np.zeros(n_steps)
states2 = np.zeros(n_steps)
states1[0] = x1_0
states2[0] = x2_0
# Simulate the dynamics
for i in range(1, n_steps):
# Calculate changes for individual 1
homeostasis1 = -alpha1 * (states1[i-1] - b1)
coupling1 = c12 * (states2[i-1] - states1[i-1])
noise1 = sigma1 * np.random.normal()
delta_x1 = (homeostasis1 + coupling1 + noise1) * dt
# Calculate changes for individual 2
homeostasis2 = -alpha2 * (states2[i-1] - b2)
coupling2 = c21 * (states1[i-1] - states2[i-1])
noise2 = sigma2 * np.random.normal()
delta_x2 = (homeostasis2 + coupling2 + noise2) * dt
# Update states
states1[i] = states1[i-1] + delta_x1
states2[i] = states2[i-1] + delta_x2
return times, states1, states2

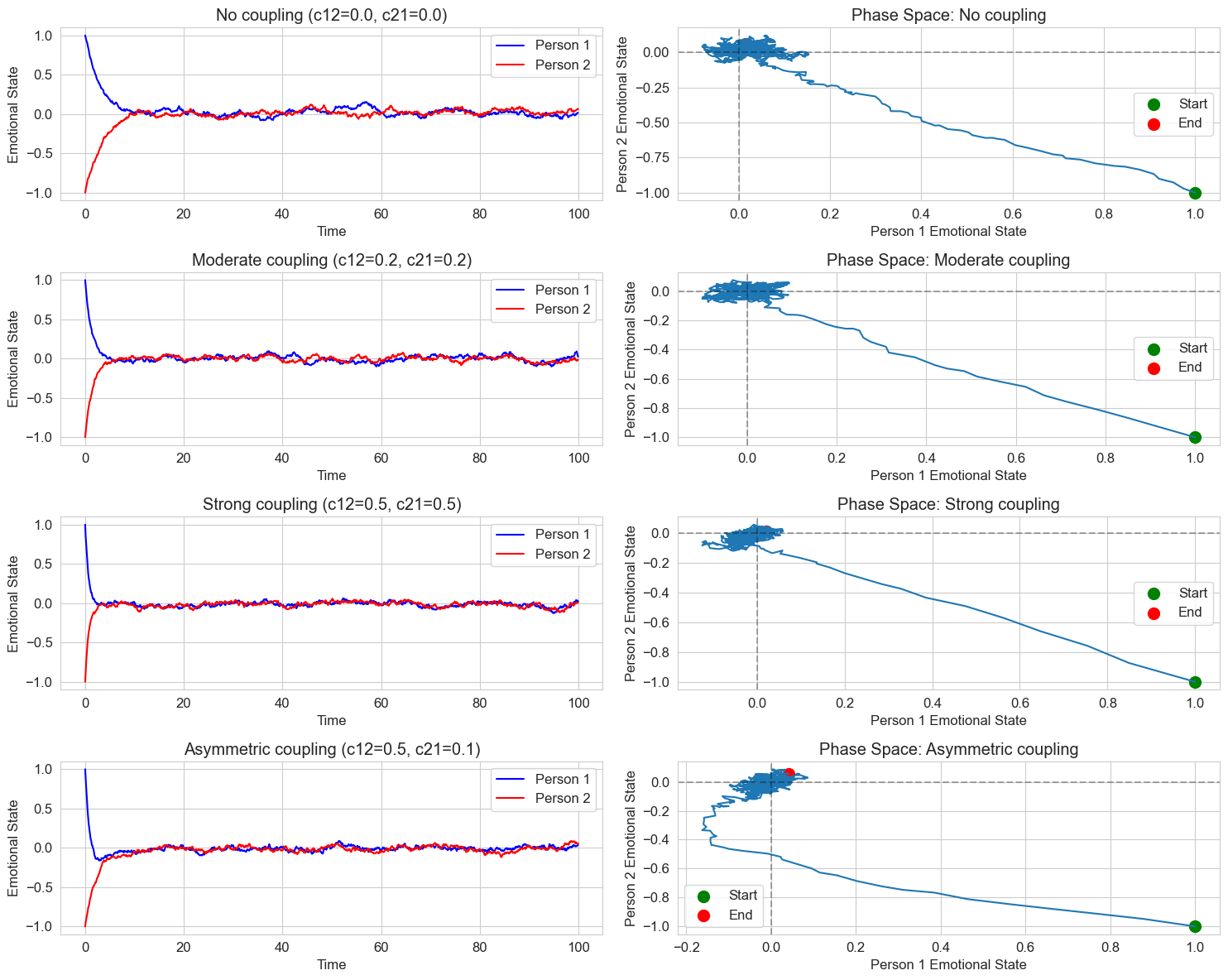

# Simulate coupled emotion dynamics with different coupling strengths
np.random.seed(42)
duration = 100
dt = 0.1
# Fixed parameters
alphas = (0.3, 0.3) # Same regulation ability
baselines = (0, 0) # Same baseline
noise_levels = (0.1, 0.1) # Same noise level
initial_states = (1.0, -1.0) # Start in opposite states
# Different coupling strengths
coupling_scenarios = [
(0.0, 0.0), # No coupling
(0.2, 0.2), # Moderate symmetric coupling
(0.5, 0.5), # Strong symmetric coupling
(0.5, 0.1) # Asymmetric coupling (person 1 influences person 2 more)
]
labels = ['No coupling', 'Moderate coupling', 'Strong coupling', 'Asymmetric coupling']
plt.figure(figsize=(15, 12))
for i, (coupling, label) in enumerate(zip(coupling_scenarios, labels)):
times, states1, states2 = coupled_emotions(
alphas=alphas,
baselines=baselines,
coupling=coupling,
noise_levels=noise_levels,
initial_states=initial_states,
duration=duration,
dt=dt
)
# Plot time series
plt.subplot(4, 2, 2*i+1)
plt.plot(times, states1, label='Person 1', color='blue')
plt.plot(times, states2, label='Person 2', color='red')
plt.title(f'{label} (c12={coupling[0]}, c21={coupling[1]})')
plt.xlabel('Time')
plt.ylabel('Emotional State')
plt.legend()
plt.grid(True)
# Plot phase space
plt.subplot(4, 2, 2*i+2)
plt.plot(states1, states2)
plt.scatter(states1[0], states2[0], color='green', s=100, label='Start')
plt.scatter(states1[-1], states2[-1], color='red', s=100, label='End')
plt.title(f'Phase Space: {label}')
plt.xlabel('Person 1 Emotional State')
plt.ylabel('Person 2 Emotional State')
plt.axhline(y=0, color='k', linestyle='--', alpha=0.3)
plt.axvline(x=0, color='k', linestyle='--', alpha=0.3)
plt.grid(True)
plt.legend()
plt.tight_layout()
plt.show()
This coupled oscillator model demonstrates several important principles of interpersonal dynamics:
Synchronization: With strong coupling, the emotional states of the two individuals tend to synchronize over time
Emotional Contagion: One person’s emotions can influence another’s, leading to emotional convergence
Asymmetric Influence: In some relationships, one person may have more influence over the other’s emotional state
Emergent Patterns: Complex patterns of interaction can emerge from relatively simple coupling mechanisms
These types of models have been used to study various interpersonal phenomena, including emotional contagion, co-regulation in couples, and parent-child interactions.
4. Reinforcement Learning Models#
Reinforcement learning (RL) is a computational framework for understanding how agents learn to make decisions through interaction with an environment. RL models have been widely used in psychology to explain how humans and animals learn from rewards and punishments.
4.1 Q-Learning: A Basic RL Algorithm#
Q-learning is a simple but powerful RL algorithm that learns the value of actions in different states. The core update equation is:
Where:
\(Q(s, a)\) is the value of taking action \(a\) in state \(s\)
\(\alpha\) is the learning rate
\(r\) is the reward received
\(\gamma\) is the discount factor for future rewards
\(s'\) is the next state
\(\max_{a'} Q(s', a')\) is the maximum value possible in the next state
Let’s implement a simple Q-learning model for a two-armed bandit task, where an agent must choose between two options with different reward probabilities:
def q_learning_bandit(alpha, beta, n_trials, reward_probs):
"""Simulate Q-learning in a multi-armed bandit task.
Parameters:
-----------
alpha : float
Learning rate (0-1)
beta : float
Inverse temperature parameter for softmax action selection
n_trials : int
Number of trials to simulate
reward_probs : list of floats
Reward probabilities for each arm
Returns:
--------
choices : array
Choices made on each trial
rewards : array
Rewards received on each trial
q_values : array
Q-values for each arm over time
"""
n_arms = len(reward_probs)
# Initialize arrays to store results
choices = np.zeros(n_trials, dtype=int)
rewards = np.zeros(n_trials)
q_values = np.zeros((n_trials + 1, n_arms))
# Initialize Q-values to zero
q_values[0] = np.zeros(n_arms)
for t in range(n_trials):
# Compute action probabilities using softmax
exp_values = np.exp(beta * q_values[t])
probs = exp_values / np.sum(exp_values)
# Choose an action
action = np.random.choice(n_arms, p=probs)
choices[t] = action
# Get reward
reward = 1 if np.random.random() < reward_probs[action] else 0
rewards[t] = reward
# Update Q-value for the chosen action
q_values[t+1] = q_values[t].copy()
q_values[t+1, action] += alpha * (reward - q_values[t, action])
return choices, rewards, q_values

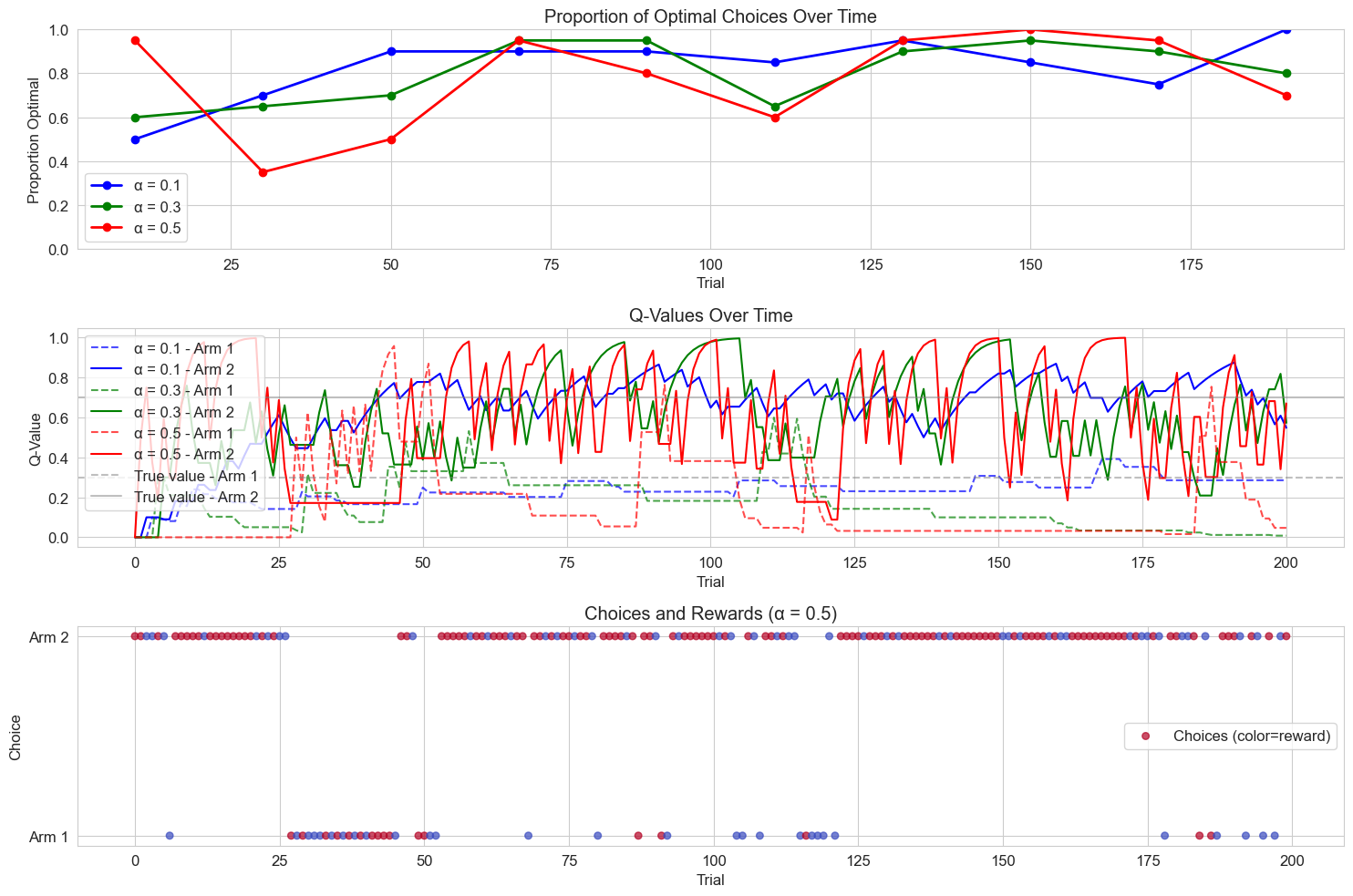

# Simulate Q-learning with different learning rates
np.random.seed(42)
n_trials = 200
reward_probs = [0.3, 0.7] # Arm 1: 30% reward, Arm 2: 70% reward
beta = 5.0 # Inverse temperature (higher = more exploitative)
# Different learning rates
alphas = [0.1, 0.3, 0.5]
labels = [f'α = {alpha}' for alpha in alphas]
colors = ['blue', 'green', 'red']
plt.figure(figsize=(15, 10))
for i, (alpha, label, color) in enumerate(zip(alphas, labels, colors)):
choices, rewards, q_values = q_learning_bandit(alpha, beta, n_trials, reward_probs)
# Calculate proportion of optimal choices in bins
bin_size = 20
n_bins = n_trials // bin_size
optimal_choice = np.argmax(reward_probs)
optimal_proportions = np.zeros(n_bins)
for b in range(n_bins):
start = b * bin_size
end = (b + 1) * bin_size
optimal_proportions[b] = np.mean(choices[start:end] == optimal_choice)
# Plot proportion of optimal choices
plt.subplot(3, 1, 1)
plt.plot(np.arange(bin_size/2, n_trials, bin_size), optimal_proportions, 'o-',
label=label, color=color, linewidth=2)
# Plot Q-values over time
plt.subplot(3, 1, 2)
plt.plot(q_values[:, 0], '--', color=color, alpha=0.7, label=f'{label} - Arm 1')
plt.plot(q_values[:, 1], '-', color=color, label=f'{label} - Arm 2')
# Plot example choices for the last learning rate
if i == len(alphas) - 1:
plt.subplot(3, 1, 3)
plt.scatter(np.arange(n_trials), choices, c=rewards, cmap='coolwarm',
alpha=0.7, s=30, label='Choices (color=reward)')
plt.yticks([0, 1], ['Arm 1', 'Arm 2'])
plt.title(f'Choices and Rewards ({label})')
plt.xlabel('Trial')
plt.ylabel('Choice')
plt.legend()
# Add titles and labels
plt.subplot(3, 1, 1)
plt.title('Proportion of Optimal Choices Over Time')
plt.xlabel('Trial')
plt.ylabel('Proportion Optimal')
plt.ylim(0, 1)
plt.legend()
plt.grid(True)
plt.subplot(3, 1, 2)
plt.title('Q-Values Over Time')
plt.xlabel('Trial')
plt.ylabel('Q-Value')
plt.axhline(y=reward_probs[0], color='gray', linestyle='--', alpha=0.5, label='True value - Arm 1')
plt.axhline(y=reward_probs[1], color='gray', linestyle='-', alpha=0.5, label='True value - Arm 2')
plt.legend()
plt.grid(True)
plt.tight_layout()
plt.show()
The Q-learning model demonstrates several important principles of reinforcement learning:
Value Learning: The agent learns the expected value of each action through trial and error
Exploration-Exploitation Tradeoff: The agent must balance exploring new options and exploiting known good options
Learning Rate Effects: Higher learning rates lead to faster adaptation but more sensitivity to noise
Convergence: With sufficient experience, the learned values converge to the true expected rewards
This type of model has been used to explain various aspects of human and animal learning, including how people learn to make choices in uncertain environments and how this learning is affected by factors such as dopamine, which is thought to signal reward prediction errors.
4.2 Temporal Difference Learning#
Temporal Difference (TD) learning extends Q-learning to handle sequences of states and delayed rewards. The TD learning update equation is:
Where \(V(s)\) is the value of state \(s\).

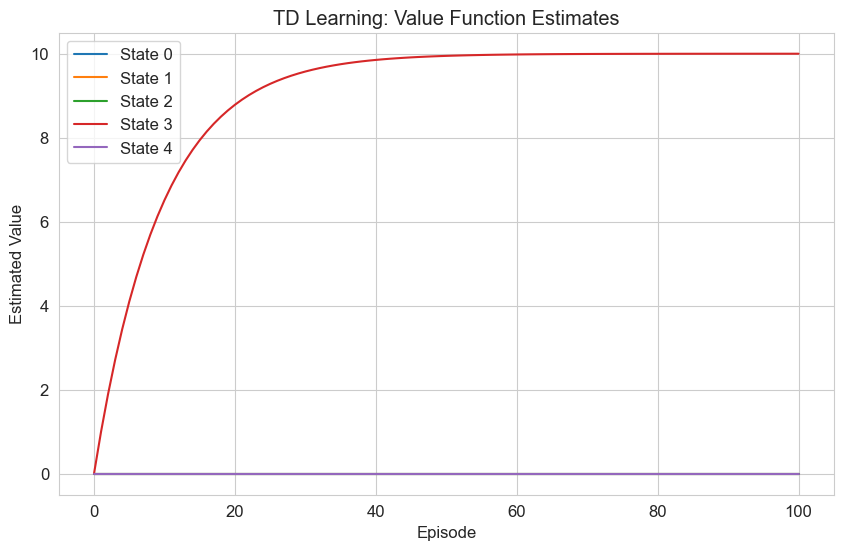

Let’s implement a TD learning model for a simple sequential decision task:
def td_learning(alpha, gamma, n_episodes, n_states, transition_probs, rewards):
"""Simulate TD learning in a Markov Decision Process.
Parameters:
-----------
alpha : float
Learning rate (0-1)
gamma : float
Discount factor (0-1)
n_episodes : int
Number of episodes to simulate
n_states : int
Number of states in the environment
transition_probs : list of lists
Transition probabilities between states
rewards : list
Rewards for each state
Returns:
--------
value_history : array
Value estimates for each state over episodes
"""
# Initialize value function
value_history = np.zeros((n_episodes + 1, n_states))
for episode in range(n_episodes):
# Start in state 0
state = 0
# Simulate until reaching the terminal state
while state < n_states - 1: # Last state is terminal
# Choose next state based on transition probabilities
next_state = np.random.choice(n_states, p=transition_probs[state])
# Get reward for the transition
reward = rewards[next_state]
# TD update
value_history[episode+1, state] = value_history[episode, state] + \
alpha * (reward + gamma * value_history[episode, next_state] - value_history[episode, state])
# For states we didn't visit in this episode, copy values from previous episode
unvisited_states = np.arange(n_states) != state
value_history[episode+1, unvisited_states] = value_history[episode, unvisited_states]
# Move to the next state
state = next_state
return value_history
n_states = 5
transition_probs = [
[0, 0.8, 0.2, 0, 0], # State 0 transitions
[0, 0, 0.6, 0.4, 0], # State 1 transitions
[0, 0.3, 0, 0.7, 0], # State 2 transitions
[0, 0, 0.5, 0, 0.5], # State 3 transitions
[0, 0, 0, 0, 1.0] # State 4 (terminal) stays in place
]
# Define rewards for each state
rewards = [0, 0, 0, 0, 10] # Only terminal state has reward
# Learning parameters
alpha = 0.1 # Learning rate
gamma = 0.9 # Discount factor
n_episodes = 100
# Run TD learning
value_history = td_learning(alpha, gamma, n_episodes, n_states, transition_probs, rewards)
# Plot the evolution of value estimates
plt.figure(figsize=(10, 6))
for state in range(n_states):
plt.plot(value_history[:, state], label=f'State {state}')
plt.xlabel('Episode')
plt.ylabel('Estimated Value')
plt.title('TD Learning: Value Function Estimates')
plt.legend()
plt.grid(True)
plt.show()
The plot shows how the value estimates for each state evolve over episodes. Notice how the values propagate backward from the terminal state with the reward. States closer to the reward develop higher values earlier, while more distant states take longer to develop accurate value estimates.
4.2 Q-Learning: Action-Value Learning#
While TD learning estimates the value of states, Q-learning estimates the value of state-action pairs. This allows the agent to learn optimal actions in each state. The Q-learning update rule is:
Let’s implement Q-learning for a simple grid world environment:
def q_learning(alpha, gamma, epsilon, n_episodes, n_states, n_actions, transition_func, reward_func):
"""Simulate Q-learning in a simple environment.
Parameters:
-----------
alpha : float
Learning rate (0-1)
gamma : float
Discount factor (0-1)
epsilon : float
Exploration rate (0-1)
n_episodes : int
Number of episodes to simulate
n_states : int
Number of states in the environment
n_actions : int
Number of possible actions
transition_func : function
Function that takes (state, action) and returns next_state
reward_func : function
Function that takes (state, action, next_state) and returns reward
Returns:
--------
q_values : array
Final Q-values for each state-action pair
reward_history : array
Total reward per episode
"""
# Initialize Q-values
q_values = np.zeros((n_states, n_actions))
reward_history = np.zeros(n_episodes)
for episode in range(n_episodes):
# Start in a random non-terminal state
state = np.random.randint(0, n_states - 1)
total_reward = 0
done = False
while not done:
# Epsilon-greedy action selection
if np.random.random() < epsilon:
# Explore: choose random action
action = np.random.randint(0, n_actions)
else:
# Exploit: choose best action (with random tie-breaking)
best_actions = np.where(q_values[state] == np.max(q_values[state]))[0]
action = np.random.choice(best_actions)
# Take action and observe next state and reward
next_state = transition_func(state, action)
reward = reward_func(state, action, next_state)
total_reward += reward
# Check if next state is terminal
if next_state == n_states - 1:
done = True
# Q-learning update
best_next_value = np.max(q_values[next_state])
q_values[state, action] += alpha * (reward + gamma * best_next_value - q_values[state, action])
# Move to next state
state = next_state
reward_history[episode] = total_reward
return q_values, reward_history
Now lets define a simple grid world environment and apply Q-learning
# Define a 4x4 grid world
# States are numbered 0-15, with state 15 as the goal
# Actions: 0=up, 1=right, 2=down, 3=left
def grid_transition(state, action, grid_size=4):
"""Determine next state given current state and action."""
# Convert state to grid coordinates
row, col = state // grid_size, state % grid_size
# Apply action
if action == 0: # Up
row = max(0, row - 1)
elif action == 1: # Right
col = min(grid_size - 1, col + 1)
elif action == 2: # Down
row = min(grid_size - 1, row + 1)
elif action == 3: # Left
col = max(0, col - 1)
# Convert back to state number
next_state = row * grid_size + col
return next_state
def grid_reward(state, action, next_state, grid_size=4):
"""Determine reward for a transition."""
# Goal state
if next_state == grid_size**2 - 1:
return 10
# Penalty for each step to encourage efficiency
return -1
# Run Q-learning
alpha = 0.1
gamma = 0.9
epsilon = 0.1
n_episodes = 1000
n_states = 16
n_actions = 4
q_values, reward_history = q_learning(
alpha, gamma, epsilon, n_episodes, n_states, n_actions,
lambda s, a: grid_transition(s, a),
lambda s, a, ns: grid_reward(s, a, ns)
)
# Plot learning curve
plt.figure(figsize=(10, 6))
# Smooth the reward history with a moving average
window_size = 50
smoothed_rewards = np.convolve(reward_history, np.ones(window_size)/window_size, mode='valid')
episodes = np.arange(len(smoothed_rewards)) + window_size - 1
plt.plot(episodes, smoothed_rewards)
plt.xlabel('Episode')
plt.ylabel('Total Reward (smoothed)')
plt.title('Q-Learning Performance')
plt.grid(True)
plt.show()
# Visualize the learned policy
def plot_policy(q_values, grid_size=4):
"""Visualize the policy derived from Q-values."""
policy = np.argmax(q_values, axis=1)
# Create a grid to visualize the policy
fig, ax = plt.subplots(figsize=(8, 8))
ax.set_xlim(0, grid_size)
ax.set_ylim(0, grid_size)
# Draw grid lines
for i in range(grid_size + 1):
ax.axhline(i, color='black', linewidth=1)
ax.axvline(i, color='black', linewidth=1)
# Draw arrows for policy
for state in range(grid_size**2):
if state == grid_size**2 - 1: # Skip goal state
continue
row, col = state // grid_size, state % grid_size
action = policy[state]
# Arrow directions
if action == 0: # Up
dx, dy = 0, 0.3
elif action == 1: # Right
dx, dy = 0.3, 0
elif action == 2: # Down
dx, dy = 0, -0.3
elif action == 3: # Left
dx, dy = -0.3, 0
ax.arrow(col + 0.5, grid_size - row - 0.5, dx, dy,
head_width=0.1, head_length=0.1, fc='blue', ec='blue')
# Mark goal state
goal_row, goal_col = (grid_size**2 - 1) // grid_size, (grid_size**2 - 1) % grid_size
ax.add_patch(plt.Rectangle((goal_col, grid_size - goal_row - 1), 1, 1, color='green', alpha=0.3))
plt.title('Learned Policy')
plt.show()
plot_policy(q_values)
4.3 Model-Based vs. Model-Free Learning#
Reinforcement learning algorithms can be categorized as model-based or model-free:
Model-free learning (like Q-learning) learns directly from experience without building an explicit model of the environment.
Model-based learning builds an internal model of the environment (transition and reward functions) and uses it for planning. Let’s implement a simple model-based learning algorithm:
def model_based_learning(n_episodes, n_states, n_actions, transition_func, reward_func):
"""Simulate model-based learning in a simple environment.
Parameters:
-----------
n_episodes : int
Number of episodes to simulate
n_states : int
Number of states in the environment
n_actions : int
Number of possible actions
transition_func : function
True transition function (state, action) -> next_state
reward_func : function
True reward function (state, action, next_state) -> reward
Returns:
--------
value_function : array
Final value function for each state
policy : array
Final policy (action for each state)
"""
# Initialize model (transition and reward estimates)
# For each state-action pair, track observed next states and rewards
transition_counts = np.zeros((n_states, n_actions, n_states))
reward_sum = np.zeros((n_states, n_actions, n_states))
reward_counts = np.zeros((n_states, n_actions, n_states))
# Initialize value function and policy
value_function = np.zeros(n_states)
policy = np.zeros(n_states, dtype=int)
# Discount factor
gamma = 0.9
for episode in range(n_episodes):
# Start in a random non-terminal state
state = np.random.randint(0, n_states - 1)
done = False
# Collect experience
while not done:
# Choose random action for exploration
action = np.random.randint(0, n_actions)
# Take action and observe next state and reward
next_state = transition_func(state, action)
reward = reward_func(state, action, next_state)
# Update model
transition_counts[state, action, next_state] += 1
reward_sum[state, action, next_state] += reward
reward_counts[state, action, next_state] += 1
# Check if next state is terminal
if next_state == n_states - 1:
done = True
# Move to next state
state = next_state
# Update value function and policy using the model (value iteration)
for _ in range(10): # Number of planning steps
delta = 0
for s in range(n_states):
old_value = value_function[s]
# Skip terminal state
if s == n_states - 1:
continue
# Compute action values using the model
action_values = np.zeros(n_actions)
for a in range(n_actions):
# For each possible next state
for ns in range(n_states):
# Skip if transition never observed
if transition_counts[s, a, ns] == 0:
continue
# Probability of transition
prob = transition_counts[s, a, ns] / np.sum(transition_counts[s, a])
# Average reward
avg_reward = reward_sum[s, a, ns] / reward_counts[s, a, ns]
# Update action value
action_values[a] += prob * (avg_reward + gamma * value_function[ns])
# Update value function and policy
value_function[s] = np.max(action_values)
policy[s] = np.argmax(action_values)
# Track maximum change
delta = max(delta, abs(old_value - value_function[s]))
# Early stopping if value function converges
if delta < 0.01:
break
return value_function, policy
Let’s compare model-based and model-free learning:
# Run model-based learning
n_episodes = 100
value_function, policy = model_based_learning(
n_episodes, n_states, n_actions,
lambda s, a: grid_transition(s, a),
lambda s, a, ns: grid_reward(s, a, ns)
)
# Visualize the model-based policy
plt.figure(figsize=(12, 5))
plt.subplot(1, 2, 1)
plot_policy(q_values)
plt.title('Q-Learning Policy (Model-Free)')
plt.subplot(1, 2, 2)
# Convert policy to Q-values format for visualization
mb_q_values = np.zeros((n_states, n_actions))
for s in range(n_states):
mb_q_values[s, policy[s]] = 1
plot_policy(mb_q_values)
plt.title('Model-Based Policy')
plt.tight_layout()
plt.show()
5. Bayesian Models of Cognition#
Bayesian models provide a framework for understanding how humans combine prior knowledge with new evidence to update their beliefs. The core of Bayesian modeling is Bayes’ theorem:
Where:
\(P(h|d)\) is the posterior probability of hypothesis \(h\) given data \(d\)
\(P(d|h)\) is the likelihood of observing data \(d\) under hypothesis \(h\)
\(P(h)\) is the prior probability of hypothesis \(h\)
\(P(d)\) is the marginal probability of data \(d\)
5.1 Bayesian Inference in Perception#
Let’s implement a simple Bayesian model of perception, where an observer tries to infer the true size of an object based on noisy visual input and prior knowledge:
def bayesian_size_perception(true_sizes, noise_level, prior_mean, prior_std, n_samples=1000):
"""Simulate Bayesian inference in size perception.
Parameters:
-----------
true_sizes : array
True sizes of objects
noise_level : float
Standard deviation of perceptual noise
prior_mean : float
Mean of the prior distribution
prior_std : float
Standard deviation of the prior distribution
n_samples : int
Number of samples for Monte Carlo approximation
Returns:
--------
perceived_sizes : array
Perceived sizes after Bayesian inference
"""
perceived_sizes = []
for true_size in true_sizes:
# Generate noisy measurement
measurement = true_size + np.random.normal(0, noise_level)
# Generate samples from the prior
prior_samples = np.random.normal(prior_mean, prior_std, n_samples)
# Calculate likelihood for each sample
likelihoods = np.exp(-0.5 * ((measurement - prior_samples) / noise_level)**2)
# Weight samples by likelihood (importance sampling)
weights = likelihoods / np.sum(likelihoods)
# Calculate weighted mean (posterior mean)
perceived_size = np.sum(weights * prior_samples)
perceived_sizes.append(perceived_size)
return np.array(perceived_sizes)
# Demonstrate size perception
true_sizes = np.linspace(1, 10, 100)
noise_level = 1.0
prior_mean = 5.0
prior_std = 2.0
perceived_sizes = bayesian_size_perception(true_sizes, noise_level, prior_mean, prior_std)
plt.figure(figsize=(10, 6))
plt.plot(true_sizes, true_sizes, 'k--', label='Veridical perception')
plt.plot(true_sizes, perceived_sizes, 'b-', label='Bayesian perception')
plt.xlabel('True Size')
plt.ylabel('Perceived Size')
plt.title('Bayesian Size Perception')
plt.legend()
plt.grid(True)
plt.show()
5.2 Bayesian Decision Theory#
Bayesian decision theory extends Bayesian inference to decision making by incorporating utilities or loss functions. Let’s implement a simple model of decision making under uncertainty:
def bayesian_decision(prior_probs, likelihoods, utilities):
"""Compute optimal decisions using Bayesian decision theory.
Parameters:
-----------
prior_probs : array
Prior probabilities of states
likelihoods : array
Likelihood of evidence given each state
utilities : array
Utility matrix [actions, states]
Returns:
--------
posterior_probs : array
Posterior probabilities of states
expected_utilities : array
Expected utility of each action
optimal_action : int
Action with highest expected utility
"""
# Calculate posterior probabilities
unnormalized_posterior = prior_probs * likelihoods
posterior_probs = unnormalized_posterior / np.sum(unnormalized_posterior)
# Calculate expected utility for each action
expected_utilities = np.dot(utilities, posterior_probs)
# Choose action with highest expected utility
optimal_action = np.argmax(expected_utilities)
return posterior_probs, expected_utilities, optimal_action
# Example: Medical diagnosis decision
# States: Disease present (0) or absent (1)
prior_probs = np.array([0.1, 0.9]) # 10% base rate of disease
# Likelihoods of test result given disease state
# P(positive|disease), P(positive|no disease)
likelihoods = np.array([0.9, 0.2]) # 90% sensitivity, 80% specificity
# Utilities for each action (treat or don't treat) in each state
# [treat if disease, treat if no disease]
# [don't treat if disease, don't treat if no disease]
utilities = np.array([
[10, -5], # Treating: benefit if disease, cost if no disease
[-20, 0] # Not treating: severe cost if disease, no effect if no disease
])
posterior, expected_utils, optimal_action = bayesian_decision(prior_probs, likelihoods, utilities)
print(f"Posterior probability of disease: {posterior[0]:.3f}")
print(f"Expected utilities: Treat = {expected_utils[0]:.2f}, Don't treat = {expected_utils[1]:.2f}")
print(f"Optimal action: {'Treat' if optimal_action == 0 else 'Do not treat'}")
Posterior probability of disease: 0.333
Expected utilities: Treat = -0.00, Don't treat = -6.67
Optimal action: Treat
6. Neural Network Models#
Neural networks are powerful computational models inspired by the brain’s structure. They’ve been used to model various cognitive processes, from perception to language.
6.1 Simple Neural Network for Categorization#
Let’s implement a simple neural network to model how humans learn to categorize stimuli:
from sklearn.neural_network import MLPClassifier
from sklearn.preprocessing import StandardScaler
from sklearn.model_selection import train_test_split
def generate_category_data(n_samples=200, noise_level=0.5):
"""Generate artificial category data with two features and two categories."""
# Category A: cluster around (0, 0)
n_a = n_samples // 2
X_a = np.random.normal(0, 1, (n_a, 2)) + np.array([0, 0])
y_a = np.zeros(n_a)
# Category B: cluster around (2, 2)
n_b = n_samples - n_a
X_b = np.random.normal(0, 1, (n_b, 2)) + np.array([2, 2])
y_b = np.ones(n_b)
# Combine data
X = np.vstack([X_a, X_b])
y = np.hstack([y_a, y_b])
# Add noise to make task harder
X += np.random.normal(0, noise_level, X.shape)
return X, y
# Generate data
X, y = generate_category_data(noise_level=1.0)
# Split into training and test sets
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.3, random_state=42)
# Standardize features
scaler = StandardScaler()
X_train_scaled = scaler.fit_transform(X_train)
X_test_scaled = scaler.transform(X_test)
# Train neural network
model = MLPClassifier(hidden_layer_sizes=(4,), activation='logistic',
max_iter=1000, random_state=42)
model.fit(X_train_scaled, y_train)
# Evaluate model
train_acc = model.score(X_train_scaled, y_train)
test_acc = model.score(X_test_scaled, y_test)
print(f"Training accuracy: {train_acc:.2f}")
print(f"Test accuracy: {test_acc:.2f}")
# Visualize decision boundary
def plot_decision_boundary(model, X, y, scaler):
"""Plot the decision boundary of a classifier."""
# Set up grid
h = 0.1 # Step size
x_min, x_max = X[:, 0].min() - 1, X[:, 0].max() + 1
y_min, y_max = X[:, 1].min() - 1, X[:, 1].max() + 1
xx, yy = np.meshgrid(np.arange(x_min, x_max, h), np.arange(y_min, y_max, h))
# Scale grid points
grid_points = np.c_[xx.ravel(), yy.ravel()]
grid_points_scaled = scaler.transform(grid_points)
# Predict class for each grid point
Z = model.predict(grid_points_scaled)
Z = Z.reshape(xx.shape)
# Plot decision boundary and data points
plt.figure(figsize=(10, 8))
plt.contourf(xx, yy, Z, alpha=0.3, cmap=plt.cm.coolwarm)
plt.scatter(X[:, 0], X[:, 1], c=y, cmap=plt.cm.coolwarm, edgecolors='k')
plt.xlabel('Feature 1')
plt.ylabel('Feature 2')
plt.title('Neural Network Decision Boundary')
plt.show()
plot_decision_boundary(model, X, y, scaler)
Training accuracy: 0.85
Test accuracy: 0.87
6.2 Recurrent Neural Networks for Sequential Processing#
Recurrent Neural Networks (RNNs) are particularly useful for modeling sequential processes like language or memory:
import tensorflow as tf
from tensorflow.keras.models import Sequential
from tensorflow.keras.layers import SimpleRNN, Dense
# Generate sequence prediction data
def generate_sequence_data(n_sequences=100, seq_length=10):
"""Generate sequences where the target is the sum of the last 3 elements."""
X = np.random.uniform(0, 1, (n_sequences, seq_length, 1))
y = np.zeros((n_sequences, 1))
for i in range(n_sequences):
# Target is sum of last 3 elements
y[i, 0] = np.sum(X[i, -3:, 0])
return X, y
# Generate data
X, y = generate_sequence_data(n_sequences=500, seq_length=10)
X_train, X_test = X[:400], X[400:]
y_train, y_test = y[:400], y[400:]
# Build RNN model
model = Sequential([
SimpleRNN(10, input_shape=(10, 1), activation='tanh'),
Dense(1)
])
model.compile(optimizer='adam', loss='mse')
model.summary()
# Train model
history = model.fit(X_train, y_train, epochs=50, validation_data=(X_test, y_test), verbose=0)
# Plot learning curve
plt.figure(figsize=(10, 6))
plt.plot(history.history['loss'], label='Training Loss')
plt.plot(history.history['val_loss'], label='Validation Loss')
plt.xlabel('Epoch')
plt.ylabel('Mean Squared Error')
plt.title('RNN Learning Curve')
plt.legend()
plt.grid(True)
plt.show()
# Test predictions
y_pred = model.predict(X_test)
plt.figure(figsize=(10, 6))
plt.scatter(y_test, y_pred)
plt.plot([0, 3], [0, 3], 'k--')
plt.xlabel('True Sum')
plt.ylabel('Predicted Sum')
plt.title('RNN Predictions')
plt.grid(True)
plt.show()
Model: "sequential"
┏━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━━━━━━━━━━━━━┳━━━━━━━━━━━━━━━━━┓ ┃ Layer (type) ┃ Output Shape ┃ Param # ┃ ┡━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━━━━━━━━━━━━━╇━━━━━━━━━━━━━━━━━┩ │ simple_rnn (SimpleRNN) │ (None, 10) │ 120 │ ├──────────────────────────────────────┼─────────────────────────────┼─────────────────┤ │ dense (Dense) │ (None, 1) │ 11 │ └──────────────────────────────────────┴─────────────────────────────┴─────────────────┘
Total params: 131 (524.00 B)
Trainable params: 131 (524.00 B)
Non-trainable params: 0 (0.00 B)
1/4 ━━━━━━━━━━━━━━━━━━━━ 0s 93ms/step
4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 28ms/step
4/4 ━━━━━━━━━━━━━━━━━━━━ 0s 33ms/step
7. Agent-Based Models#
Agent-based models simulate interactions between multiple individuals (agents) to study emergent social phenomena.
7.1 Schelling Segregation Model#
The Schelling model demonstrates how individual preferences can lead to segregation patterns:
def schelling_model(grid_size=50, n_iterations=100, empty_ratio=0.2, similarity_threshold=0.3, n_types=2):
"""Simulate Schelling's segregation model.
Parameters:
-----------
grid_size : int
Size of the grid (grid_size x grid_size)
n_iterations : int
Number of iterations to run
empty_ratio : float
Proportion of cells that are empty
similarity_threshold : float
Minimum ratio of similar neighbors for an agent to be satisfied
n_types : int
Number of different agent types
Returns:
--------
grid_history : list
Grid state at each iteration
"""
# Initialize grid
grid = np.zeros((grid_size, grid_size), dtype=int)
# Fill grid with agents
n_empty = int(grid_size * grid_size * empty_ratio)
n_agents = grid_size * grid_size - n_empty
agent_types = np.random.randint(1, n_types + 1, n_agents)
# Randomly place agents
agent_positions = np.random.choice(grid_size * grid_size, n_agents, replace=False)
for i, pos in enumerate(agent_positions):
row, col = pos // grid_size, pos % grid_size
grid[row, col] = agent_types[i]
grid_history = [grid.copy()]
# Run simulation
for _ in range(n_iterations):
# Shuffle agent positions for random processing order
np.random.shuffle(agent_positions)
for pos in agent_positions:
row, col = pos // grid_size, pos % grid_size
agent_type = grid[row, col]
if agent_type == 0: # Skip empty cells
continue
# Check neighbors
neighbors = []
for i in range(max(0, row-1), min(grid_size, row+2)):
for j in range(max(0, col-1), min(grid_size, col+2)):
if i == row and j == col:
continue
neighbors.append(grid[i, j])
# Calculate similarity ratio
n_neighbors = len(neighbors)
n_similar = sum(1 for n in neighbors if n == agent_type)
n_occupied = sum(1 for n in neighbors if n > 0)
# If no occupied neighbors, agent is satisfied
if n_occupied == 0:
continue
similarity_ratio = n_similar / n_occupied
# If agent is unsatisfied, move to random empty cell
if similarity_ratio < similarity_threshold:
# Find empty cells
empty_cells = np.where(grid == 0)
empty_indices = list(zip(empty_cells[0], empty_cells[1]))
if empty_indices:
# Choose random empty cell
new_row, new_col = random.choice(empty_indices)
# Move agent
grid[new_row, new_col] = agent_type
grid[row, col] = 0
grid_history.append(grid.copy())
return grid_history
# Run Schelling model
import random
np.random.seed(42)
random.seed(42)
grid_history = schelling_model(grid_size=20, n_iterations=50, similarity_threshold=0.4)
# Visualize initial and final states
plt.figure(figsize=(12, 6))
plt.subplot(1, 2, 1)
plt.imshow(grid_history[0], cmap='viridis')
plt.title('Initial State')
plt.axis('off')
plt.subplot(1, 2, 2)
plt.imshow(grid_history[-1], cmap='viridis')
plt.title('Final State')
plt.axis('off')
plt.tight_layout()
plt.show()
# Create animation
from matplotlib.animation import FuncAnimation
fig, ax = plt.subplots(figsize=(8, 8))
im = ax.imshow(grid_history[0], cmap='viridis')
ax.set_title('Schelling Segregation Model')
ax.axis('off')
def update(frame):
im.set_array(grid_history[frame])
return [im]
ani = FuncAnimation(fig, update, frames=len(grid_history), interval=200, blit=True)
plt.close() # Prevent duplicate display
# Display animation in notebook
from IPython.display import HTML
HTML(ani.to_jshtml())
8. Conclusion#
Computational modeling provides a powerful approach for formalizing and testing psychological theories. In this chapter, we’ve explored several modeling frameworks:
Reinforcement Learning Models help us understand how humans and animals learn from rewards and punishments
Bayesian Models formalize how prior knowledge influences perception and decision-making
Neural Network Models simulate brain-like information processing
Agent-Based Models capture emergent phenomena in social systems Each modeling approach has its strengths and limitations, and the choice of model depends on the specific psychological phenomenon being studied. By implementing these models computationally, we can generate precise predictions that can be tested against empirical data.
As computational power continues to increase, psychological models are becoming increasingly sophisticated, allowing researchers to simulate complex cognitive processes with greater fidelity. This convergence of psychology and computational science represents an exciting frontier for advancing our understanding of the human mind.
9. Exercises#
Modify the TD learning algorithm to implement SARSA, another popular reinforcement learning algorithm.
Extend the Bayesian perception model to account for multiple sensory cues (e.g., vision and touch).
Implement a simple connectionist model of semantic memory using a neural network.
Create an agent-based model of social influence where agents update their opinions based on their neighbors.
Design and implement a computational model of a psychological phenomenon of your choice.
